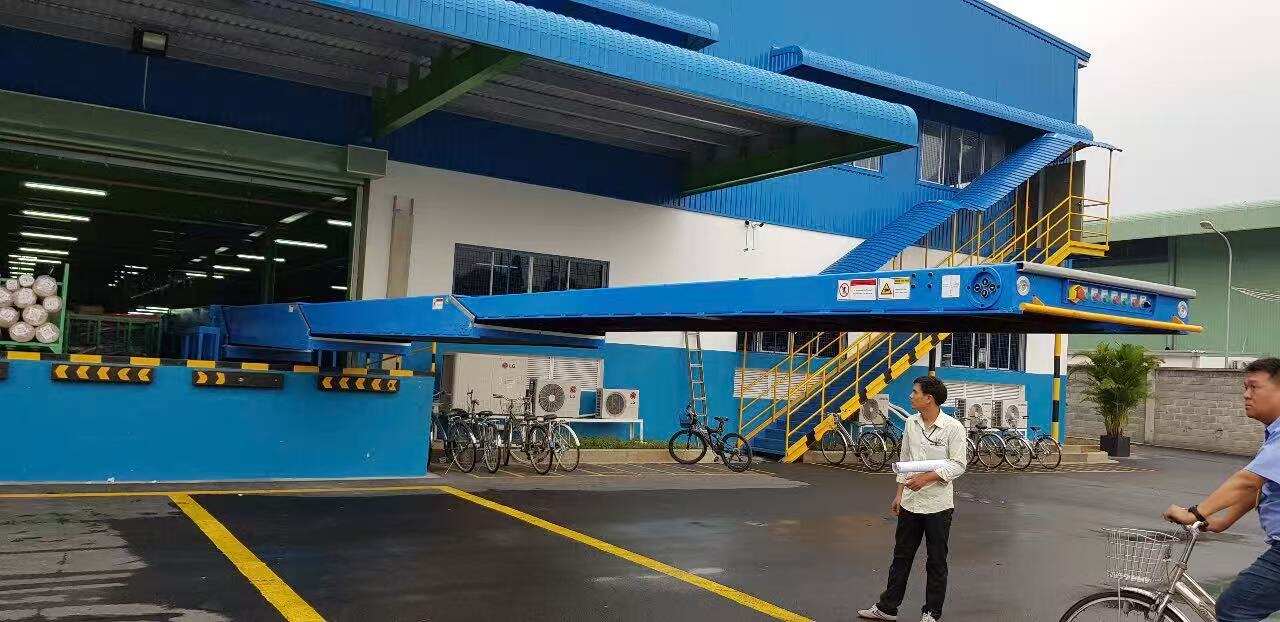

4-Section Telescopic Conveyor

Why is the "4-section" often the safer range for standard platform loading and unloading, rather than the longer the better?

When many people first look at a Telescopic Conveyor, their attention naturally goes to "how deep it can extend." But in a real workstation, deeper reach is only half the story: the other half is the footprint after retraction, the turning space it requires, and whether enough passage and standing room can be left near the loading/unloading opening. Greater extension does shorten the handling distance inside the truck body, but once the retracted equipment takes up too much aisle space, people, pallet movers, and even forklifts have to detour, and continuous operation is disrupted instead—on site, it ends up as "powerful equipment, but a messier loading area.".

If you place this contradiction within the framework of "extension capability—retracted footprint—traffic organization, " it becomes easier to understand the role of the 4-section model: it is often used for standard dock loading/unloading and high-load logistics operations, not because "the longer the better, " but because under the door openings, dock openings, aisle widths, and standing habits of most warehouses and distribution centers, 4 sections often strike a better balance between reach and passage, making loading and unloading smoother. Precisely because of this balance, many sites, when selecting a Telescopic Conveyor, will first start from Telescopic Conveyor In this category, the "4-section" is often used as the primary comparison baseline, and then the number of sections is adjusted according to the workstation space.

The typical task is to "reach deep into trucks and containers and bring the goods to a more convenient position inside the warehouse." When vehicles dock frequently and turnover happens across multiple shifts, what on-site operations fear most is not one slightly slow loading/unloading cycle, but having to repeatedly adjust positioning, repeatedly lower the load to the ground and lift it again for every vehicle. Once a 4-section Telescopic Conveyor is extended into position, the handoff at the truck opening is easier to keep in rhythm: goods are passed to the front end inside the box and are smoothly carried out along the conveying surface without requiring staff to shuttle back and forth too much inside the truck body.

A common misjudgment is also very typical: focusing only on maximum extension depth while ignoring the usable width of the door opening/dock opening, whether traffic must be kept clear near the truck opening, and whether upstream/downstream line connections will create waiting backlogs. Many choices that "look longer and better" ultimately fail because of on-site organization: the equipment can extend in, but after retraction its footprint narrows the aisle, or there is no buffer at the exit, causing the loading and unloading process to alternate between smooth and blocked.

In what situations is a 4-section Telescopic Conveyor more worth prioritizing for truck or container loading/unloading?

If your site is under high loading/unloading pressure and vehicles are coming and going frequently, the value of a 4-section Telescopic Conveyor is often not about chasing a single point of speed, but about reducing the small repetitive actions of "taking a few steps, bending over a few times, lowering and lifting a few times, " making the loading/unloading motion continuous. Once that continuity is established, the staff experience becomes very noticeable: they are no longer constantly forced to wait at the truck opening—for people, for vehicles, or for the downstream process.

It is easier to judge whether you are within the advantageous range if you separate "truck loading/unloading" from "container unloading." Truck loading/unloading places more emphasis on docking efficiency and compatibility with multiple vehicle types: the same dock may see a 9.6-meter truck in the morning and a box truck or high-sided truck in the afternoon, and you want the equipment to extend quickly, retract quickly, and not occupy the dock opening for too long. Container unloading, on the other hand, tests how operations are organized deep inside the container: the space inside is long and narrow, the handoff distance between people and goods is long, and the extension capability and front-end working surface more directly affect whether "secondary handling inside the container" is needed. If you want stronger reach while not sacrificing aisle usability near the loading/unloading opening, 4 sections is usually a better starting point for discussing the balance.

Many workstations actually have a kind of "conflicting demand": they want to extend deeper to reduce handling inside the truck body, yet they must leave passage space near the loading/unloading opening so that people can push carts, perform checks, wrap film, or let a forklift pass occasionally without getting stuck. Such contradictions are not rare, especially at loading/unloading openings in e-commerce warehouses and express delivery warehouses—both throughput and organization are required. You can also compare it with how similar workstations are implemented, for example in Container carton unloading to warehouse solution what matters is often not "how deep it extends, " but "after the handoff at the truck opening, how the warehouse side picks it up and keeps the flow uninterrupted.".

In addition, material form and operating method must be considered together. Cartons, totes, and small express parcels perform differently on roller or belt systems; the same 4-section Telescopic Conveyor will also have very different smoothness and accumulation risk under purely manual coordination versus line-to-line connection. If your downstream already has a stable-paced roller conveyor, first make sure the connection target is clear—for example, whether the back end needs to connect to Powered Roller Conveyor or whether a more flexible transition section is needed, which will directly affect whether your expectations for the 4-section model can be realized.

What really determines whether loading and unloading run smoothly is not extension length, but how "people–machine–line" can form a continuous motion at the truck opening

Whether loading and unloading are smooth comes down to whether a continuous motion can naturally occur from the truck opening to the main warehouse line: the working surface inside the container/truck hands the goods to the front end of the Telescopic Conveyor, and the Telescopic Conveyor steadily carries the goods out to the warehouse accumulation area or main conveyor line. The goal is not to force every problem onto one machine, but to minimize intermediate ground transfers and waiting, so the rhythm feels more like a continuously flowing chain.

Therefore, a Telescopic Conveyor rarely solves every problem on its own; it is more like the "extension section" of the loading/unloading unit. When you want downstream continuous conveying and also need to divert flow or connect to scanning/verification stations, a common approach is to link rhythmically with the warehouse roller line; at this point you can further learn about Chain Powered Roller Conveyor This is a main-line form that is more focused on stable rhythm. On the other hand, if the site is temporary, the budget is more sensitive, or you prefer a more flexible layout, you may also use a non-powered section for transition, for example with 50 mm Gravity Roller Conveyor guide the outlet of the telescopic section to a more suitable consolidation area, so that sorting/stacking can be completed in a place where staff are not disrupted by the equipment footprint.

"Whether there is a loading dock or a height difference is often the turning point. With a loading dock, the focus is usually on height matching with the main line and whether a buffer area is needed at the loading and unloading point; without a loading dock, or when the height difference is obvious, the telescopic section often has to be considered together with hydraulic equipment, otherwise even if it can extend into the truck compartment, repeated handling will occur at the height transition. If you often encounter large height changes between the floor and the truck bed on site, it is recommended to include Large Hydraulic Conveyor This kind of solution that "handles the height issue first" should also be included in the comparison baseline; otherwise, the advantages of Telescopic Conveyor will be swallowed up by the height difference.

From a human-machine collaboration perspective, bottlenecks often come from positioning and passageways: whether staff stand at the truck opening or beside the line, whether the passage is occupied by the retracted machine body, and whether the extension and retraction rhythm interferes with loading and unloading. These factors often determine smoothness more directly than "can it extend one more section?" If you want to verify this difference, you can take a look at Telescopic Conveyor Direct Warehouse Conveyor Loading and Unloading Solution In this kind of case, after the equipment is connected, how do on-site actions become more coherent?—many improvements come from line organization rather than the machine itself.

How do 4-section, 3-section, 2-section, and 5-section models compare: the differences usually lie in usable space on site and work organization, rather than being "more advanced"

When comparing the number of sections, it is best to return to three on-site questions: how deep into the truck/trailer or container you need to cover; whether the machine position after retraction will take up a critical passageway; and whether there is enough turning space and standing room near the truck opening. Changing the number of sections is essentially reallocating space among these three things—you gain a little more "ease of extension, " but you also need to ask whether the cost of occupying space during retraction becomes larger as well.

The obvious benefit of having fewer sections is less space taken up when retracted, more flexible layout, and less obstruction to doorways and passageways. For example, in sites where the extension requirement is relatively conservative, or where the loading/unloading area is already tight, start by looking at 2-section Telescopic Conveyor It is often more practical: it may not be "more powerful, " but it is easier to fit into existing passageway and positioning logic. On the other hand, when deep-in operations are the core requirement—for example, when the working area inside a container often needs to be pushed further in—too few sections will hand the handling distance back to people, and over time this will show up as physical strain and rhythm fluctuations.

The real cost of having more sections usually comes from higher requirements for the site, the connected line, and work organization. You may gain deeper coverage and less handling inside the truck/trailer or container, but if the interface at the opening, buffering, and access are not solved together, extending further in can instead make it easier for goods to pile up at the exit and cause waiting at the truck opening. For example, when evaluating deeper coverage, you can compare with 5-section Telescopic Conveyor Its application boundaries: it is more suitable for conditions where there is enough space and the line can also accommodate it; if your loading and unloading passage also has to handle mixed pedestrian and vehicle traffic, then you need to be more cautious about whether the occupied space during retraction will make organization more complicated.

Bringing the choice back to "vehicle and loading/unloading layout" is often more down-to-earth: whether the same loading dock needs to be compatible with multiple vehicle types, whether vehicles change frequently at the loading and unloading point, and whether one machine needs to be shared among multiple stations—all of these determine whether you need more "deep reach capability" or "layout and passage flexibility." When you feel that the 4-section model is too deep or takes up too much space, take a look at 3-section Telescopic Conveyor Its positioning will make it easier to map the difference in section count back to your own door opening, passageway, and standing position.

Where does the price difference usually come from: even when both are called "4-section Telescopic Conveyor, " the total implementation cost is not determined by the main unit alone

A common confusion in procurement is: why do solutions vary so much in total investment when they are all called "4-section Telescopic Conveyor"? The key is "same name, different configuration"; the difference is often not driven by the main unit itself, but by the entire loading and unloading line: how the connection section is designed, whether the telescopic section needs to be integrated into the existing main line, what kind of movement and positioning methods are needed on site, and how far the control linkage needs to go.

In a way that people on site can easily understand: if you want a more stable continuous rhythm with in-warehouse conveying, it usually involves a better-matched roller configuration and linkage method; if the goal is only to move goods out of the truck first and create temporary storage outside the opening before manual sorting takes over, then the complexity of the connection section decreases, and the investment structure will be different as well. For example, if you plan to connect the rear end of a 4-section Telescopic Conveyor to a main line that runs continuously for a long time, the comparison baseline is often placed on a more reliable Powered Roller Conveyor solution; in that case, you can refer to O-type belt Powered Roller Conveyor This kind of setup makes it easier to balance cycle time, noise, and maintenance convenience.

When there is a height difference at the loading and unloading position or there is no loading dock, introducing a ramp section turns "whether it can be used" directly into "which combination is more stable." In such cases, the common quotation differences do not lie in the Telescopic Conveyor itself, but in "how the height difference is solved, how buffering is handled, and how passage is kept clear." If you want to handle the height difference and the connection more reliably in one step, you can include Small Hydraulic Conveyor or the lighter Micro Hydraulic Conveyor into the solution discussion together—not to pile up equipment, but to prevent the advantages of the telescopic section from being consumed by the interface.

"The amount of on-site modification" is also a real variable that determines the total investment: doorway and passage constraints, loading dock conditions, the power supply and control linkage method, and interface adaptation with existing lines will all widen the total cost. Many times the difference comes from the site, not from the optional items listed on the equipment page. You can calibrate your communication boundaries with a case, for example: Warehouse Loading and Unloading Hydraulic Conveyor Direct Roller Line For this kind of combination, the key is not the unit price of a single machine, but whether, after the lines are connected, people need to do less and pause less.

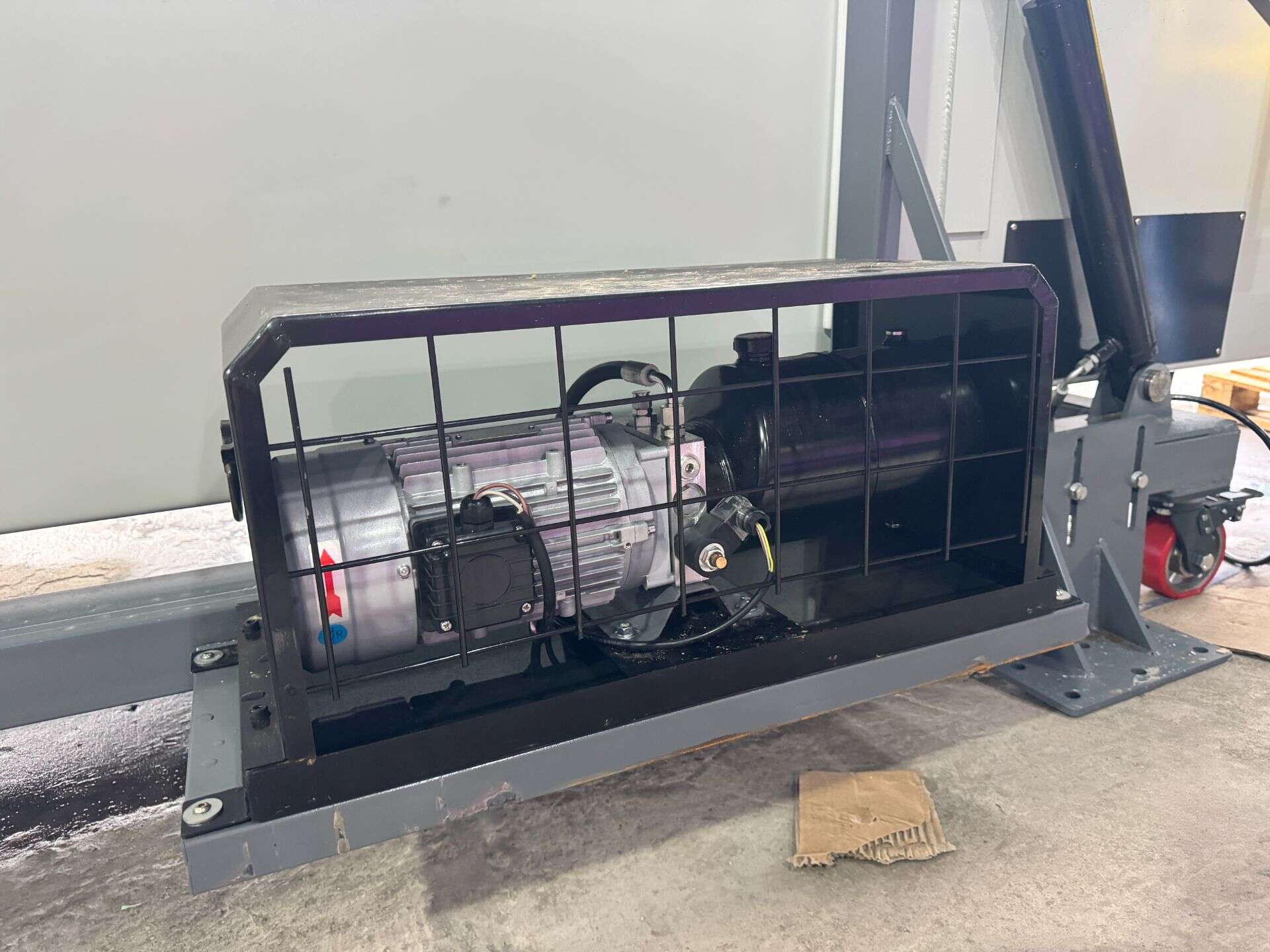

Going one layer deeper are the hidden costs: under high loads and multiple shifts, maintainability and ease of replacement affect downtime probability and recovery speed. Hydraulic and electric control systems are more worry-free under stable operating conditions, but they can also expose problems more easily when used improperly or when the environment fluctuates greatly. In other words, beyond the quotation boundary, what really matters to operations is the cost of "how to recover after one day of downtime.".

The most easily underestimated risk before going live: not whether the equipment can extend, but whether the site can keep loading and unloading continuously without breaking the chain

In many projects, it is only after launch that people realize the truly vulnerable point is the "connection point": fluctuations in dock height, doorway constraints, and occupied passages can narrow the effective working window of a Telescopic Conveyor; if you then add inconsistent heights in the existing line and centerline deviations, it is easy to run into jams, dropped cartons, or repeated adjustments at the interface, breaking the rhythm. You can see the value of this kind of "interface thinking" in advance through case studies, such as Container 180-Degree Turning Loading and Unloading Solution What makes it worth looking at is often not how complex the equipment is, but the fact that it considers space constraints, turning, and interface rhythm together, avoiding a situation where it can convey but is not easy to use.

Accumulation problems are also easily misread as "a single machine not working, " but the essence is a line issue: when the downstream rhythm cannot keep up, there is insufficient buffer space, or the diversion logic is missing, goods will accumulate at the outlet of the telescopic section, forcing the dock area to stop and wait. If you can clarify downstream capacity and buffer positions before going live, many "chain breaks" are actually preventable. If your warehouse needs more stable continuous conveying, you can refer to Multi-rib Belt Powered Roller Conveyor The organizing logic of this kind of main line: it is better suited to smoothing the rhythm and placing accumulation points in controllable locations, rather than letting accumulation occur at the dock opening.

Another common source of downtime is not a fault, but the work arrangement: conflicts in personnel positioning inside the truck, at the dock opening, and alongside the line; the withdrawal/extension actions clash with passage needs, and loading and unloading then becomes "take two steps, stop once." Real optimization usually means rearranging the positioning, passages, and equipment motion rhythm together. You can compare it with on-site solutions such as a logistics warehouse loading efficiency improvement plan to see how it makes loading and unloading more continuous through line organization and positioning arrangements.

Maintenance and stability also need to be discussed in the context of the operating environment: high loads and multiple shifts do not necessarily cause problems, but they will magnify the differences in hydraulics and electrical control in terms of usage standards, environmental fluctuations, and maintenance discipline. The busier the warehouse, the more it needs to treat "maintainability and recoverability" as part of the selection criteria—not to make maintenance sound complicated, but to ensure that when things get truly busy, fault handling does not bring the entire loading and unloading line to a halt.
