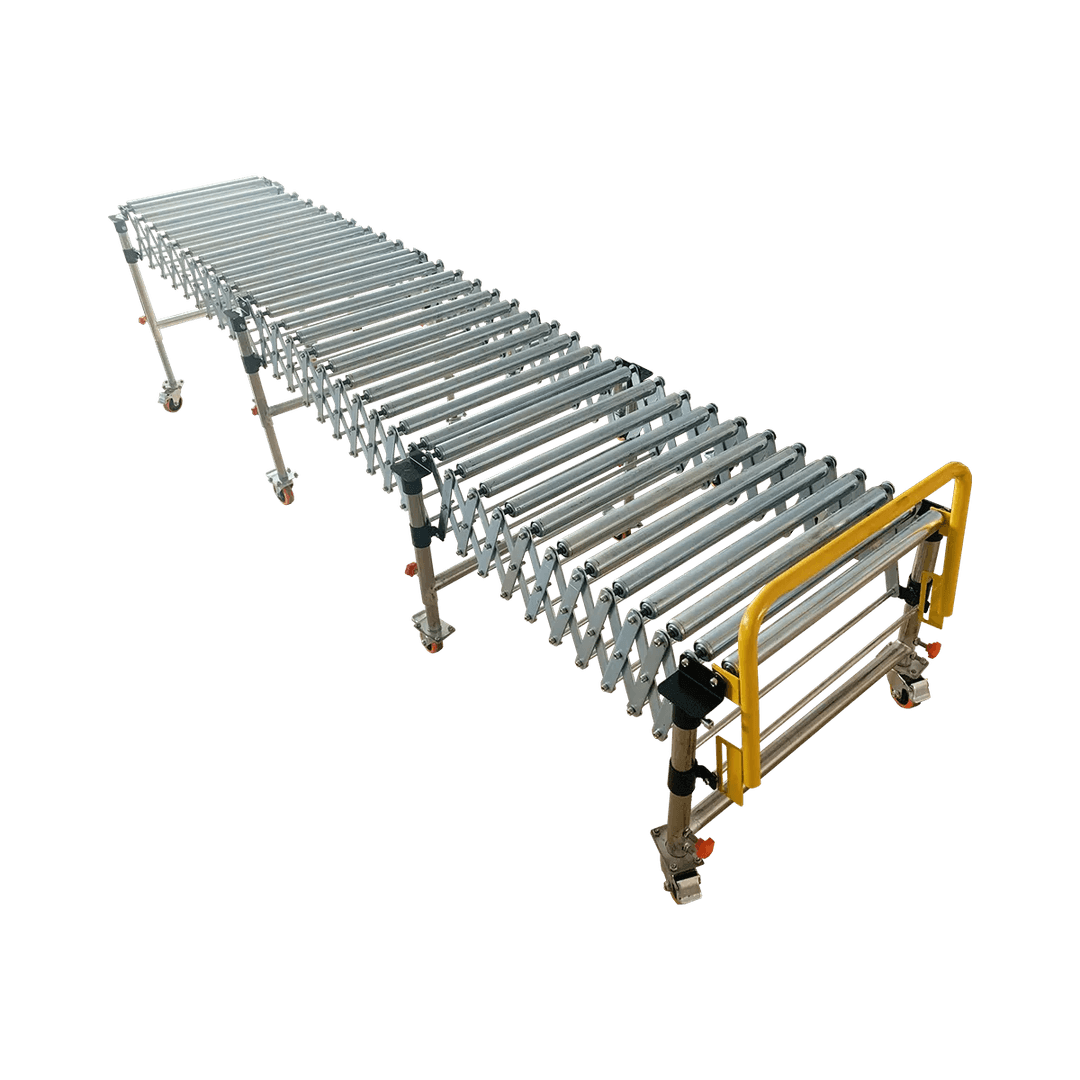

Gravity Roller Conveyor

Why is the "front-end buffer section" on many unloading lines actually better suited to a 50 mm Gravity Roller Conveyor?

If you break an unloading line down, you will find that the most troublesome part is often not the main conveying section, but the stretch between the truck opening and the main line inside the warehouse: one box at a time, then a stack; some people place them neatly, while others set them down casually and they end up skewed; some box bottoms roll smoothly, while others drag. The 50 mm Gravity Roller Conveyor is more like a "front-end buffer section" specifically prepared for this uncertainty: it first turns the boxes coming out of the truck into items that can be received, pushed, and held temporarily for a short time, then hands the relatively stable flow of goods to the equipment behind it.

Many on-site teams only realize the value of this kind of "buffer" after they have paid the price: front-end impact and rhythm fluctuations hurt the downstream first, not the people. For example, if the back end uses a powered line, boxes may stop abruptly and surge violently at the transfer point, and over time this will drag down the back end's rhythm, noise, and failure rate together. Putting the non-powered section at the front is like adding a "filter" to the back end: you straighten the direction, open up the spacing, and slow the speed at the front, so the back end is more like it is handling "normal operating conditions." If you are also planning a similar overall flow, you can first put this kind of equipment back into Gravity Roller Conveyor its proper role for understanding—it is not meant to replace the powered section, but to free the powered section from the clutter.

Another very practical reason many people choose a non-powered buffer section is limited space at the unloading opening, the need to keep aisles clear, and the need to store the equipment when not in use. This model has a folding ratio of 1: 2.9 and a compact structure, which means you can switch more easily between "in use" and "stored, " making it especially suitable as a permanent transfer section at the unloading opening rather than a fixed main line inside the warehouse.

Let's also make the scope of this page clear: focusing on high-frequency scenarios such as box handling, regular warehouse workstations, and side-panel unloading into the warehouse, it mainly answers "Is this model suitable for me, and how should I connect the line?" rather than broadly explaining all non-powered equipment. If you want to first look at a similar on-site layout, you can also compare it with Side-Panel Unloading Gravity Roller Conveyor into Warehouse The point of this case is not "which devices were used, " but "how the front-end buffer section protects the back end.".

Under which operating conditions is it more worth prioritizing, and under which conditions does it instead become more and more awkward to use?

If your goal is to "make unloading smoother and the back end more stable, " and the goods on site are mainly common box-type items such as cartons and tote boxes, with obvious rhythm fluctuations (someone passes goods in the truck and someone receives them in the warehouse, so the speeds are naturally inconsistent), then the 50 mm non-powered roller conveyor is usually worth prioritizing. What it does best is provide an on-site transition section where goods can pause briefly, be manually corrected, and not be dragged directly along the floor.

In a "side-panel unloading to warehouse" flow, its more common role is a front-end transfer point: first stabilize the goods flow coming out of the truck opening, give the warehouse staff time to straighten, sort, or scan the boxes, and then hand the relatively even flow of goods to the back end. You will find that this division of labor is different from Gravity Skate Wheel Conveyor not quite the same: skate wheels are better at "turns, angled routes, and compromise in narrow aisles, " while a non-powered roller conveyor is better at "smooth rolling on straight sections." If your site has a clear turning requirement, refer to Gravity Skate Wheel Conveyor for Truck Unloading It will be easier to build an intuition for where skate wheels are more flexible and where rollers are smoother.

But if what you really need is continuous rhythm and speed control—for example, you want boxes to pass continuously through a workstation at a relatively stable speed, or you want the entire line to "move on its own"—then the non-powered section will feel strained. It relies on gravity and manual pushing; when people get tired, the goods drag, and the rhythm falls apart. At that point, a more suitable comparison baseline often shifts to Powered Roller Conveyor On equipment that can serve as the main conveyor, you replace "people pushing" with "line-driven rhythm, " and you will find that the difficulty of site management changes accordingly.

Another situation that becomes more and more awkward to use usually comes from the condition of the cargo bottom: if the bottom is too soft, easily deformed, or has friction characteristics that cause inconsistent rolling, the site will frequently experience pushing resistance, backflow, and jams. When dealing with bagged goods or soft-packed materials, many sites switch to rubber-covered or more suitable powered solutions. The reason is not that they are "more advanced, " but that the bottom surface determines rolling resistance and controllability. You can refer to Rubber-Covered Roller Conveyor for Bagged Powder Handling the thinking about "matching the bottom surface with the conveying method, " and then decide whether the non-powered section is suitable for your current cargo mix.

What really determines whether it works well is not whether there are rollers, but whether the width selection matches the 50 kg/m load

Before talking about the experience, let's put the confirmed specifications on the table first: this model has a roller width of 50 mm, a conveying load of 50 kg per meter, and effective widths available in 500/600/800/1000 mm; the folding ratio is 1: 2.9. Its positioning is closer to a basic buffer-and-transfer section rather than a platform for accumulation and heavy loads.

How to choose the effective width makes a big difference in the field. A wider width gives boxes more room to sit, and common unloading behaviors at the discharge point—such as a temporary diagonal placement or a casual set-down—are easier to accommodate, reducing the pressure from scraping and alignment correction. But increasing the width also means a larger footprint and changes in standing position; once the aisle gets squeezed, it can actually make movement more awkward. A narrower width saves space and suits situations where the unloading point is already tight and a pedestrian passage must be kept clear, but once it gets too narrow, even a slight offset in a box can rub against the edge, and pushing it can produce fluctuating resistance that feels like it alternates between light and heavy.

Many people choose width only by asking whether the box can fit, but at the unloading point the more critical question is: do you want the boxes to move "straight" on the rollers, or should they still roll even when placed at an angle? During side-compartment unloading, the direction of the boxes coming out is not always an ideal straight line, and the width margin directly affects smoothness. To see this difference more concretely, you can compare roller conveyor to warehouse interface The way the center connection point is handled: it is not that wider is always better; rather, it should make it easy for people to stand, for goods to be placed, and for the downstream section to connect smoothly.

As for load, it is best understood "per meter": the key is not how heavy a single item is, but how long a stretch of goods may build up on the buffer section at any given moment. If you use it as a temporary staging area, the longer the pile, the faster resistance and poor rolling will be amplified, and pushing will increasingly feel like you are "forcing it by hand." If your line naturally tends to accumulate at the front end (for example, if the downstream section has rhythm points such as scanning, sorting, or labeling), a more reasonable approach is often to let the downstream section handle pace control while the front end serves only as a short buffer; the downstream solution can first be explored in Powered Roller Conveyor classification to find a combination direction that is close, and then work backward to determine how restrained the front-end buffer needs to be.

When placing it in an unloading line: how to connect it smoothly with Telescopic Conveyor, skate wheel sections, and powered sections

Whether the connection is smooth or not first depends on whether the division of labor in the line is smooth. The unpowered section is good at receiving goods and buffering, making unstable upstream flow more predictable; continuous conveying and pace control are better handled by downstream sections that are more controllable. The more you treat it as a front-end buffer section, the more value it can deliver; the more you make it carry the main conveying task, the more it will amplify human effort and on-site fluctuations.

When the downstream side is a powered roller conveyor, the stability of the handoff sets the upper limit of the experience. A common approach is to first square the boxes, slow them down, and increase spacing on the unpowered section so that the boxes enter the powered section already in an orderly state. That way, the powered section can focus mainly on continuous conveying instead of dealing with chaos at the inlet. If you want to compare powered section types further, you can start from multi-rib belt Powered Roller Conveyor or chain Powered Roller Conveyor by looking at the characteristics of these solutions: one is more continuous and gentle, while the other is better suited to specific surface types and operating conditions. The selection logic usually comes from your expectations for pace and the contact surface.

When combined with a skate wheel section, the usual idea is that the skate wheels provide flexibility while the rollers provide smooth rolling. Skate wheels are easier to deploy in turns, angled paths, and places where the aisle needs to be rerouted; for straight sections that need easier pushing and more continuous rolling, rollers are more comfortable. You can treat Gravity Skate Wheel Conveyor as a kind of "space adapter, " and the unpowered roller conveyor as a "rolling experience stabilizer"; the two do not conflict. The key lies in which is more dominant among the site’s turning radius, aisle width, and the bottom surface of the goods.

When the truck body is deep and the manual carrying distance is long, introducing telescopic equipment upstream often solves the issue of "people having to walk around" first. The telescopic end sends goods from deep inside the truck to the truck opening or the warehouse entrance, and the front end then uses an unpowered roller conveyor to provide a buffer zone, making the rhythm between the telescopic end and the main line inside the warehouse easier to coordinate. You can look in Telescopic Conveyor classification to first build an intuition for "extending in to close the distance, " and then reconsider where the unpowered buffer section should be placed to save effort; the corresponding on-site rhythm can also be referenced from Express distribution center Telescopic Conveyor unloading this kind of case centered on "reducing walking.".

The difference in quotation and long-term maintenance usually comes down to the folding structure, resistance management, and on-site usage

Why do investments differ even though they are both called unpowered roller conveyors? What really creates the gap in the field is often not whether there are rollers, but how much the structure has to shoulder for the way it is used. The 1: 2.9 folding ratio of this model brings compactness and stowability, but it also means that structural parts, connection methods, and the strength margin for repeated opening and closing all affect long-term performance. What you are really comparing is the "durability and on-site friendliness included within the quotation range, " not just the name of a line body.

The usefulness of a folding structure is built on more restrained on-site habits: frequent folding and unfolding, impact loading, or the long-term accumulation of humid and dusty conditions can all make the rolling and handoff feel deteriorate earlier than expected. Unpowered equipment may look simple, but the simpler it is, the more it depends on the site treating it as a "buffer section" rather than a "stacking area." Many maintenance pressures are not due to poor materials, but to a mismatch in role: the front end is overloaded, cannot move, and is forced with brute effort, causing the rollers and bearings to work under resistance they were never meant to bear.

Rolling resistance is never caused by a single factor. The condition of the goods’ bottom surface determines whether they can roll; dust and entanglement determine whether they get heavier with use; and treating the buffer section as a stacking area turns the problem into "the more you pile, the harder it is to push." If there is a lot of dust or debris on site, or if bagged materials are mixed in with boxes, the downstream section may need to consider rubber-covered rollers and a more controllable solution; you can compare Powered Rubber-Covered Roller Conveyor classification approach: what it solves is not "faster, " but "still controllable under more difficult surface conditions.".

From the perspective of "protecting the powered section, " a more comfortable combination is often to let the unpowered section handle the transfer buffer while the powered section handles the main conveying and pacing. For example, some warehouses make the main line into a powered roller conveyor and use an unpowered section at the front to absorb fluctuations; this kind of line can also be seen in warehouse loading and unloading Hydraulic Conveyor direct-connect roller line where a similar division of labor logic can be seen: each section does what it does best, and maintenance pressure naturally does not concentrate in one position that is forced to be all-purpose.

What is easiest to overlook before going live is the "human-machine collaboration rhythm" and the "role allocation of buffer section length"

The "smoothness" of the unpowered section first comes from people. Pushing force, placement angle, standing position, and walking path all directly determine whether goods move forward continuously or keep flowing back and getting stuck. This is also a variable that many sites initially underestimate: the equipment may be selected correctly, but if people stand in the wrong place and push in the wrong way, the experience still feels awkward. Especially in side-compartment unloading scenarios where the rhythm is naturally uneven, the buffer section is essentially there to leave room for operation.

The length of the buffer section is not better simply because it is longer; it must match the fluctuations. Its job is to absorb impact and pace variations so that the downstream section has time to take over. If its length is treated as a "natural accumulation zone, " congestion will become the norm starting from the front end. You will see a common reverse effect: the more the front end piles up, the harder it is to push, while the downstream section becomes more likely to suffer concentrated impact, ultimately turning the original intention of "protecting the powered section" into "creating impact." This kind of line imbalance in Loading into the warehouse via side unloading from a Gravity Roller Conveyor It’s easy to find a reference point here: for the same kind of gravity-fed transfer, how smoothly things go often depends on who the "buffering" actually makes easier.

Stability at the transfer point determines the ceiling of the experience. Whether the downstream section is a powered section or a roller section, if the flow direction, entry angle, and speed changes are not controlled, even the best downstream setup will be forced to handle the mess. In many cases, there is no need for complex modification; once the role of the buffer section is clarified and the human-machine rhythm is aligned, the downstream section will feel like it’s finally getting a normal load of goods.

If your site involves not only horizontal transfer but also elevation differences up and down (for example, from a loading dock to the ground, or from the ground to the second floor), don’t load all the tasks onto the buffer section. The more natural approach is to let the buffer section handle only smooth transfer, and leave inclines or lifting to dedicated equipment. For slope-related needs, refer to the Hydraulic Conveyor category; for cross-floor needs, refer to the Vertical Conveyor category. In this way, each section of the line works within its own capability boundaries, and long-term stability will be better.

When you need a deeper comparison, first place the 50 mm and 38 mm models on the same unloading line for side-by-side reference

To compare the differences between 50 mm and 38 mm, the most effective way is not to focus on the names, but to place them into the same "side unloading — buffering — downstream conveying" chain: what exactly do the differences affect—smoothness, the role of buffering, or space usage? You can directly compare the 38 mm Gravity Roller Conveyor with this model in your site layout: do you need a more compact setup, or do you care more about the continuity of pushing and the feel of docking?

When your goal upgrades to "less manual pushing, stronger rhythm control, " the comparison baseline should naturally expand to powered roller and telescopic equipment. Otherwise, the gravity section will be forced to take on the main conveying task, and it will be hard for the site to be satisfied. You can start with solutions such as the O-belt Powered Roller Conveyor to understand what "rhythm control" can bring to the site, and then decide where the gravity section is best kept.

If the downstream line is planned as a controllable paced line, a common combination approach is to let the powered roller section take over the main conveying, while keeping the gravity section at the front end as a buffer, so the line better matches each section’s strengths. As for situations where the truck-loading distance is still the bottleneck, telescopic equipment is often more effective than simply extending the gravity section—once the front end solves the distance problem, the cooperation between the buffer section and the main line becomes more natural. For a site-level intuition, you can refer to the unloading process of a 3-section Telescopic Conveyor at an express logistics center: what is worth watching is that "people are no longer dragged down by distance, " not that "the equipment looks very long.".

One last point that is closer to a real site judgment: if you want this equipment to have a very low "presence" in daily use, design it as a buffer section—short, smooth, and easy to connect; if you use it as the main conveyor, it will remind you of its limits every time you push, stack, or encounter a jam. For most side-unloading-to-warehouse scenarios, the 50 mm Gravity Roller Conveyor draws this boundary quite clearly and is also easier to put into practice.
