The boundaries of loading and unloading conveyor equipment: which problems conveyors solve, and which require process and site coordination
One of the most common misconceptions at loading and unloading sites is to interpret "faster" as "replace it with a bigger and faster machine." Conveyor equipment is better at solving "continuous transfer" and "reducing manual carrying distance, " but truck door openings, docking methods, personnel passage, and on-site turning space still determine whether you can connect smoothly and operate continuously.
The difference between loading and unloading is not the "direction, " but the deviation in vehicle docking position, truck door opening constraints, personnel entry and exit paths, and the reachable range inside the truck. When the working distance inside the truck varies greatly, the first thing usually evaluated is the telescopic conveyor to turn "manual carrying distance" into "conveying distance"; if the loading or unloading point is constrained yet wider coverage is needed, the choice will shift toward the double-wing conveyor—this kind of structural approach based on "expanded coverage.".
Many bottlenecks in loading and unloading efficiency come from the combined effect of "carrying distance + height difference + turns + waiting." Conveyors can make transport along the route continuous, but conditions such as dock height, the deviation range of vehicle parking positions, ground flatness, and drainage still affect whether end-point docking is stable. This is why the same type of goods can produce completely different user experiences at different dock doors.
Transfer within a warehouse is more like "route organization": straight sections provide stable supply, turns/merging/diverging determine flow direction, and end-point docking determines whether items can smoothly enter workstations, temporary storage, or palletizing areas. The basic framework here usually comes down to a combination of powered roller conveyor and gravity roller conveyor, with the final choice made according to throughput rhythm and the degree of manual involvement.
Floor-to-floor connection is a vertical handling issue, and the stable solution is often a vertical conveyor used together with a horizontal conveyor line, avoiding the slipping, space occupation, and safety risks caused by using overly long inclines or temporary height padding to "make up the height.".
Enter by loading and unloading scenario: typical selection logic for containers / box trucks / dock doors
When your loading and unloading target is a container or a box truck, the first things to clarify are: whether the effective operating distance inside the truck changes frequently, whether the door opening imposes hard constraints on the equipment dimensions, and whether there is an unavoidable height difference between the end of the equipment and the truck floor. The stretch of distance inside the truck that becomes "harder to handle the farther in you go" is often exactly where the Telescopic Conveyor where it delivers value; and whether the telescopic section operates smoothly often depends on whether the door-frame limit, clear height, and end transition allow goods to pass through steadily.
If there is a height difference at the dock opening, significant variation in truck bed height, or the loading/unloading point needs to switch frequently between different vehicles, the first option usually evaluated is a Inclined Conveyor as a continuous transition section. The key is not that "the steeper the better, " but whether the incline can balance controllability for manual pushing, cargo stability, and reachable end docking height; otherwise, the site may end up in the awkward situation where goods can go uphill but operators do not dare let go, or docking is possible but congestion occurs easily.
For main transfer between the warehouse interior and the loading/unloading point, most setups return to roller systems: when cadence, queuing, and continuous supply are needed, the preference is usually for a Powered Roller Conveyor, while for short distances with more manual involvement, a Gravity Roller Conveyor is more common. When cargo surfaces are relatively slippery, bagged goods lack sufficient friction, or incline sections are prone to slipping, attention also shifts to a Powered Rubber-Coated Roller Conveyor—a solution that balances both friction and protection.
When the loading/unloading point is space-constrained and wider left-right coverage is desired, a Double-Wing Conveyor is often used to achieve "expanded coverage + greater flexibility for entering and exiting the truck." But its benefits and limitations come together: whether the site allows the required expansion radius, whether expansion affects pedestrian or vehicle traffic, and whether the end can still maintain stable docking are all more important than simply whether it can unfold.
Narrowing the options by cargo and bottom-surface conditions: conveyor selection for cartons, bagged goods, totes, and irregular items
Cartons may seem like the easiest goods to convey, but what really affects smooth transport is often the bottom support condition and lateral restraint. Roller spacing, guidance in curved sections, and transition structures determine whether cartons experience wheel drop, edge jamming, or deformation from pushing; when discussing the application, specifying the carton size range, whether the bottom has recesses/openings, and whether there are soft or collapsed cartons is usually much closer to the real operating conditions than simply saying "cartons.".
Bagged goods place more emphasis on friction and deformation control: insufficient friction causes slipping, while excessive friction can create issues such as wrinkling and snagging at accumulation or curve points, as well as uneven stress on the bag opening. In these conditions, many users compare a combination of Inclined Conveyor and Powered Rubber-Coated Roller Conveyor: the former handles controllability in height transitions, while the latter focuses more on contact surface performance and posture stability.
For totes/material bins, the key lies in the bottom rib structure, perforations, and foot pad design. A discontinuous bottom amplifies bumping caused by gaps between rollers, which in turn affects noise, stability, and throughput; if frequent turns or route changes are also involved, the advantages of a Skate Wheel Conveyor in layout flexibility may also be considered.
For irregular goods or goods with discontinuous bottoms, first determine whether "continuous support + guided protection" can be achieved. When that is difficult to guarantee, instead of forcing a certain type of roller, it is better to first clarify the carrier strategy: whether pallets, boards, or standardized totes can be used to make bottom-surface contact more controllable, and then match the specific form of roller or skate wheel conveyor accordingly.
From standalone machines to line combinations: common connection methods for telescopic + incline + roller line + vertical lift
A common unloading-line approach is to use a telescopic section to shorten handling distance inside the truck, then use a buffer transfer section at the exit to absorb peaks, and add a height-transition section when necessary to accommodate changes in truck height. The core of line design is not that "every section must be included, " but preventing bottleneck buildup at the truck opening: once end docking is unstable or buffering is insufficient, repeated waiting inside the truck becomes unavoidable, making it hard for both labor and equipment to perform effectively.
A loading line places more emphasis on "collection and queuing." The main line in the warehouse first organizes the cargo flow to the loading point, and the end section then resolves the height difference and coverage range for entering the truck, with the goal of keeping loading continuous and avoiding pushing buildup; therefore, in many scenarios the main warehouse trunk line is handled by a Powered Roller Conveyor, while the loading point is combined with a Telescopic Conveyor or incline section to complete the flexible docking of the "last segment.".
For floor-to-floor connection, it is advisable to treat the lifting section as a stable vertical node: the upstream and downstream sides need sufficient connection length and buffer space, avoiding forcibly converting the floor height difference into an overly long incline that causes slippage and takes up excessive space. This usually brings the discussion back to the coordination between a Vertical Lift and a horizontal roller line—stabilize the vertical section first, then address cadence and flow direction.
The value of turns and diverters lies in reducing secondary handling, but "being able to turn" does not necessarily mean "the site will save labor." Curved sections must simultaneously consider cargo lateral stability, speed differential, and guided protection; otherwise, frequent manual correction will still be needed on site. This is why, even within roller systems, many users place curves and key workstations on more controllable powered systems, such as comparing a Multi-Wedge Belt Powered Roller Conveyor and a Chain-Driven Powered Roller Conveyor for their differences in stability and suitable operating conditions.
The comparison dimensions that truly set suppliers apart when discussing solutions and quotations
The first step in matching the equipment to the operating conditions is aligning it with space constraints: door opening width and height, aisle width, truck-to-dock offset, turning radius, and maneuvering space all directly determine the structural form and end connection method. For example, even within telescopic solutions, when the distance variation inside the truck is greater and docking is more frequent, it is often necessary to further compare the trade-offs between different numbers of telescopic sections, such as from 2-section telescopic conveyor to 5-section telescopic conveyor in terms of coverage range versus usable on-site space.
Stability issues often arise in the "contact surface and guiding" aspects. Material selection, guide edges, and transition structures determine whether products are prone to misalignment, pushing, slipping, or damage; these differences are more apparent in conditions involving bagged goods, soft packaging, smooth surfaces, or incline conveying. In scenarios with a high risk of slipping, when discussing powered rubber roller conveyors, the focus should be on "how to achieve both improved friction and posture control at the same time, " rather than looking only at a single configuration term.
Safety and protection measures should be tied to the on-site workflow: the interaction zones between personnel and equipment, operating habits involving frequent vehicle entry and exit, and the accessibility of emergency stop functions all determine whether the system can run stably under high-frequency loading and unloading without frequent downtime. For users, what matters is whether the manufacturer is willing to clearly explain the risks and boundaries, rather than simply giving a verbal promise that it "can be done.".
Maintainability depends on "wear parts and accessibility." Different drive methods vary greatly in tensioning, cleaning, and replacement paths, and maintenance convenience often directly affects long-term downtime risk; for example, within powered roller systems, when comparing O-belt powered roller conveyor with other transmission methods, in addition to the operating logic, the practicality of later cleaning and replacement should also be included in the evaluation.
Typical application references: validating approaches from unloading to warehousing, and from picking to truck loading
In the process from container or truck unloading to warehousing, the key is to smooth out the short-term peaks at the truck opening. When the reachable distance inside the truck varies greatly, 3-section telescopic conveyor solutions of this kind are often used to reduce operator back-and-forth movement; whether a smooth buffer transfer can be formed at the outlet then determines whether the main line inside the warehouse can receive the flow of goods at a steady rhythm. For cases showing how real solution thinking evolves, refer to Container carton unloading to warehouse solution and Express center 3-section telescopic conveyor unloading process— typical combinations of "in-truck distance + outlet connection.".

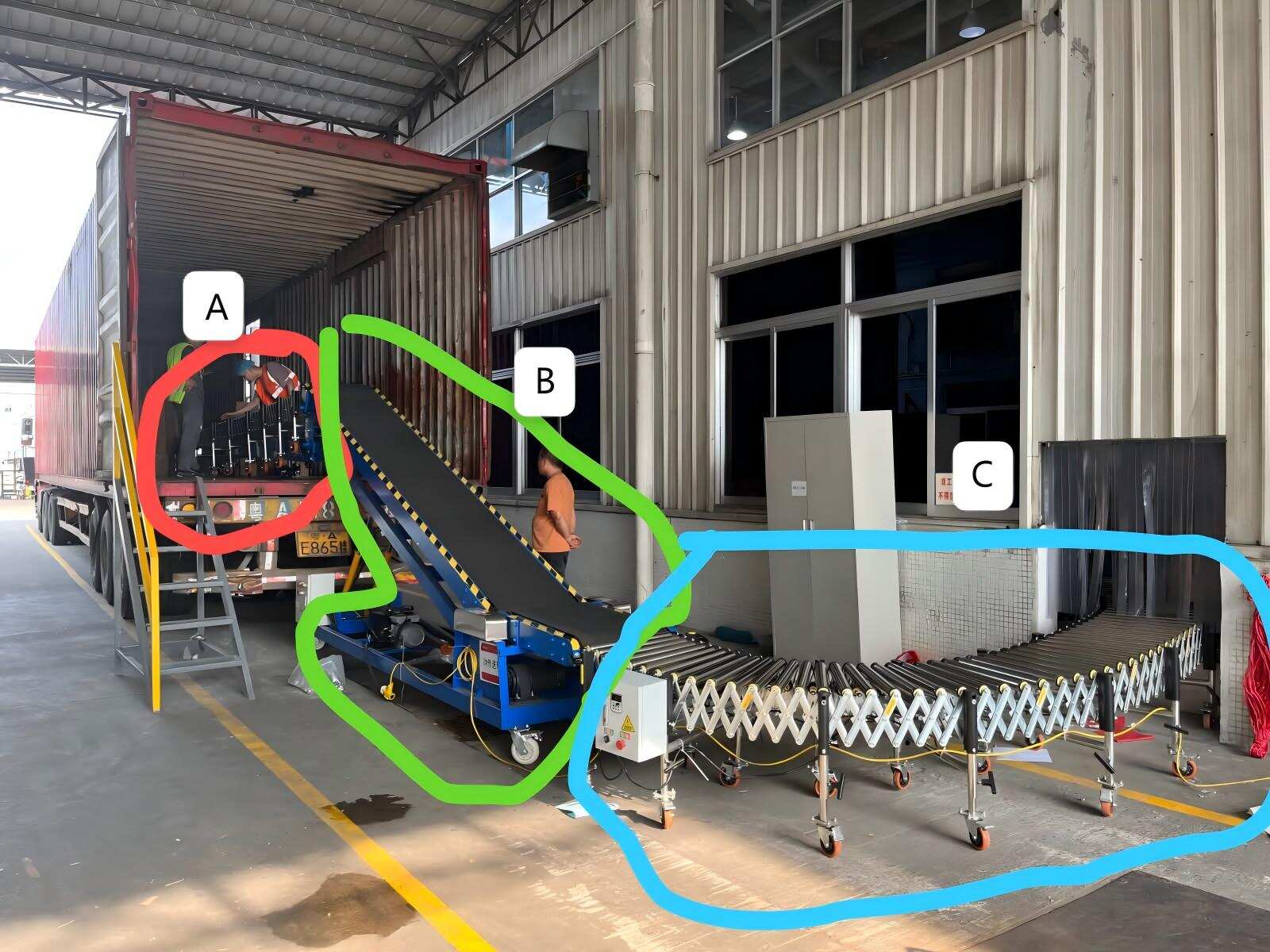

Loading and unloading bagged goods requires simultaneous control of friction and product posture. Incline section transitions, guide protection, and end transfer methods determine whether misalignment, slipping, or jamming is likely to occur. In many scenarios, the incline section is handled by the more height-adaptable medium hydraulic conveyor or small hydraulic conveyor, while stable transfer is handled by the roller line; to validate the approach for bagged goods, you can refer to 25 kg bagged feed loading and unloading solution to understand the interaction between "friction, incline sections, and end transfer.".
When warehouse unloading involves turns and aisle organization, curved sections do more than change direction; they also play a practical role in rhythm control and collision prevention. Non-powered sections can reduce cost and complexity, but at turns and frequent transfer points, it is often even more important to clearly explain "whether a more flexible layout is needed"; in such cases, skate wheel conveyor is often compared together with roller sections; for related scenarios, you can also refer to Food warehouse unloading: improving efficiency with a skate wheel conveyor to understand why labor savings at turns usually come from guidance and pass-through performance, not just from the equipment itself.
When a telescopic section is directly connected to the warehouse conveyor line, special attention should be paid to the end docking height and flexibility: unstable docking can easily cause pushing and accumulation, while expandability determines whether turns, diverters, or temporary storage sections can be added quickly in the future. For this kind of "loading/unloading point directly connected to the warehouse line" approach, you can refer to Telescopic conveyor directly connected to warehouse conveyor line loading and unloading solution to understand the impact of line continuity on daily use.
Common question: why the choices among telescopic, hydraulic incline, roller, and non-powered conveyors often differ even though they are all used for loading and unloading
Telescopic sections are not inherently better than fixed lines. When the working distance inside the truck changes greatly and docking is frequent, the value of telescoping becomes more obvious; if the positions of the loading/unloading point and the truck are stable, a fixed transfer section may be simpler and more durable, with maintenance more controllable over time. Choosing the number of telescopic sections is also not a case of more being better. More sections mean stronger coverage capability, but they also place higher demands on on-site space and docking conditions, for example from 2-section telescopic conveyor to 5-section telescopic conveyor between them, the key is the "range of variation you need to cover, " not "which one is more advanced.".
The difference between gravity rollers and skate wheels often comes down to "bottom-surface passability and turning capability." When the cargo has a continuous bottom surface and is manually pushed over short distances, gravity roller conveyors are more common; when the bottom contact points are more suitable or a more flexible layout is needed, gravity skate wheel conveyor has more advantages. At the model level, if you care more about light loads, cartons, and the handling feel of common bottom-surface pass-through, you can also further explore options such as 38 mm gravity roller conveyor these common groupings, but the focus of the discussion should still return to "whether the bottom surface is continuous, whether edges are prone to catching, and whether frequent turns are needed.".
The difference between powered rollers and powered rubber-coated rollers often comes down to friction and control objectives: surface material, easily slipping cargo, and incline conditions can all amplify the gap. If your main pain point is that "cargo does not behave well on inclines or at accumulation points, " then the discussion should focus more on the contact surface and posture stability rather than only the name of the drive form; this is also why powered rubber-coated roller conveyors are often compared with standard powered roller conveyors.
Incline conveying solves elevation transitions near loading and unloading points, while lifting solves vertical movement between floors. Treating a floor-to-floor height difference as a long incline often creates problems in space, safety, and stability; when you need to span floors and want a more stable flow path, you should usually return to the logic of a vertical conveyor, then coordinate the rhythm and flow direction with upstream and downstream roller lines.
