In warehouses with a second-floor storage area, if metal sheets, metal blocks, and cartons are moved manually or by forklift up and down frequently, not only is there a lot of back-and-forth movement and unstable rhythm, but collisions and pileups are also likely to occur at the transfer point. This case uses Naili Conveyor Elevator to vertically convey goods from the first-floor collection point to the second floor, achieving "continuous transfer between floors" and allowing on-site personnel to focus their energy on key actions such as placing, checking, and packing.
Case Scenario: Moving Mixed Goods from the First Floor to the Second Floor
The typical working condition shown in this video is:
- Goods type: metal sheets, metal blocks, cartons (mixed together)
- Purpose: convey goods from the first floor of the warehouse to the second-floor storage/work area
- On-site characteristics: there is a level difference between floors, requiring a stable vertical transfer channel
Equipment used: Elevator (vertical conveying)
The core equipment in this scenario is Elevator, used to lift goods from a lower floor to a designated transfer point on an upper floor.
Elevator Series
The vertical conveyor is specially designed for multi-level continuous transportation, enabling smooth movement of goods between different floors with...
Metal Drum
Plastic Drum
Roll
Carton
Bagged

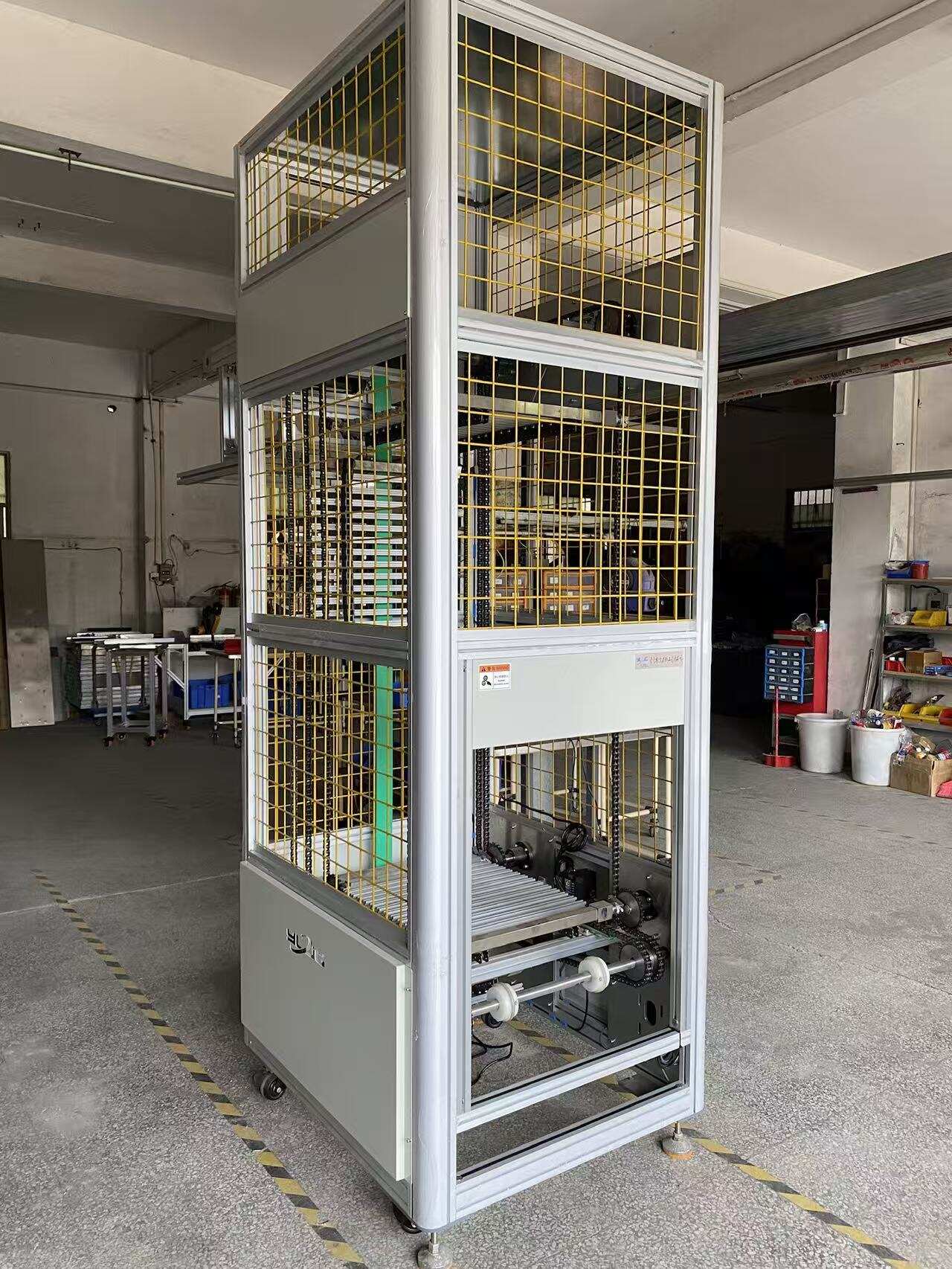

If you are planning a similar flow path for goods to enter a high-level warehouse directly from a truck or the first floor, you can refer to this type of selection and layout approach: Vertical Elevator.
On-site process: continuous transfer with personnel coordination
This solution is not a "fully automated warehouse" and still requires on-site personnel to coordinate upstream and downstream actions. The focus is on shortening the handling path and making handoffs smoother.
1) First floor: collection and loading
- Personnel arrange the metal sheets/metal blocks/cartons into a position convenient for transfer
- Feed the goods into the inlet end of the Elevator according to the on-site takt time
- For goods with significantly different shapes, it is recommended that personnel perform simple positioning, alignment, and spacing control to reduce the risk of jamming and edge collisions
2) Lifting: vertical conveying between floors
- The Elevator takes on the most labor-intensive part of overcoming the floor height difference
- making goods flow more continuously and reducing manual trips up and down the stairs
3) Second floor: receiving, temporary storage, and diversion
- Personnel receive the goods at the second-floor discharge end
- Push the goods to the temporary storage area, sorting area, or directly into storage according to storage location/order
Why it suits this type of warehouse: solving the challenge of going upstairs with "height difference + mixed goods"
In second-floor warehouse operations, the common pain point is that "the height difference must be overcome, and the goods are not uniform in shape." This case's Elevator solution is closer to real-world implementation:
- Suitable for multiple types of goods: mixed flow of metal sheets/metal blocks/cartons, without frequent changes in handling method
- Reduce labor intensity: reduce the number of times workers carry loads by hand and move up and down the stairs
- The flow is clearer: fix "vertical transfer" as a dedicated channel so the site is easier to organize
Layout tips: a few details that take it from "usable" to "easy to use"
The following are the points most likely to cause problems on site; we recommend confirming them during planning:
Transfer point location
- On the ground floor, place the feed end as close as possible to the collection / receiving / production discharge point
- On the second floor, place the discharge end as close as possible to the usual storage location or the sorting and packing area to reduce secondary handling distance
Cargo posture and handling equipment
- Metal sheets should be manually aligned before entering the machine to avoid scratches and collisions caused by tilted placement or raised edges
- For carton goods, keep the bottom surface flat. If necessary, use a transfer board / pallet approach for unified loading (depending on site conditions)
Connection with horizontal conveying (optional)
If the second floor requires a longer horizontal transfer distance, a section of roller conveyor is usually added at the discharge end as a buffer and diversion channel. For the connection between roller conveyors and warehouse systems, refer to: Powered Roller Conveyor with photoelectric sensors for interval conveying.
