Food raw material warehouse 60-meter roller line loading solution

A large food ingredients factory deployed a 60-meter multi-wedge-belt powered roller conveyor (Powered Roller Conveyor) together with a medium hydraulic conveyor (Hydraulic Conveyor) to achieve continuous conveying from warehouse racks to the truck bed, greatly improving the loading efficiency of carton-packed goods.

Publish Date: 2026-03-11

In the daily operation of a large food ingredients factory, how to efficiently load and dispatch large quantities of boxed goods from the warehouse is a key factor affecting overall logistics efficiency. Traditional forklift handling is not only labor-intensive, but also limited in turnover efficiency in warehouses with dense shelving. This case demonstrates an innovative solution: by deploying a 60-meter Multi-Wedge Belt Powered Roller Conveyor on the ground and pairing it with a Medium Hydraulic Conveyor, a continuous conveying channel was built from the depths of the warehouse directly to the truck body, achieving a more streamlined and efficient loading process.

Solution Configuration and Layout

The warehouse of this food ingredients factory is spacious, with a large number of storage racks inside. To optimize the loading process, the solution adopts the following core equipment combination:

Ground Conveying Section: a 60-meter-long Multi-Wedge Belt Powered Roller Conveyor.
Incline Transition Section: a Medium Hydraulic Conveyor used to connect the ground conveying line with the truck bed and overcome the height difference.
Conveying Section Inside the Truck: a 10-meter-long Multi-Wedge Belt Powered Roller Conveyor, extending directly into the truck body.

Roller conveyor used inside the warehouse

The layout of the conveyor line is extremely flexible. The 60-meter roller line on the ground is not laid out in a straight line; instead, it is designed to follow arbitrary turns according to the arrangement of warehouse shelves and the actual conditions of the forklift aisles. This allows the conveyor line to wind through the shelving area, cover picking points to the greatest extent possible, and reduce the forklifts' travel distance.

Operation Process and Efficiency Improvement

After the modification, the loading process became exceptionally simple and efficient:

Warehouse Loading: Forklifts transport the boxed food ingredients placed on wooden pallets to the area near the starting end of the ground roller conveyor line. Workers only need to unload the boxes from the pallets and place them directly onto the roller conveyor line.
Automatic Conveying: Once the goods are placed on

Multi-Wedge Belt Powered Roller Conveyor (Powered Roller Conveyor)

The Multi-Wedge-Belt Powered Roller Conveyor (Multi-Wedge-Belt Powered Roller Conveyor) uses a multi-wedge-belt drive design to achieve smooth and eff...

Plastic Drum Metal Drum Carton Roll
View Product →

, they will automatically move forward under powered drive. Along the preset turning path, the conveyor line smoothly transports the goods to the entrance of the Medium Hydraulic Conveyor at the warehouse exit.
Incline Loading: The goods are

Medium Incline Conveyor (Hydraulic Conveyor)

The Medium Hydraulic Conveyor (Medium Hydraulic Conveyor) is designed specifically for sites without loading and unloading platforms and is suitable f...

Metal Drum Plastic Drum Roll Carton Bagged
View Product →

lifted and smoothly transitioned onto the 10-meter roller line laid inside the truck compartment. The large-inclination design of the Incline Conveyor makes effective use of space and enables rapid lifting.
Stacking Inside the Truck: The roller line inside the truck continues to convey the goods deeper into the compartment, where workers can easily receive and neatly stack them without having to shuttle back and forth between the compartment and the ground.

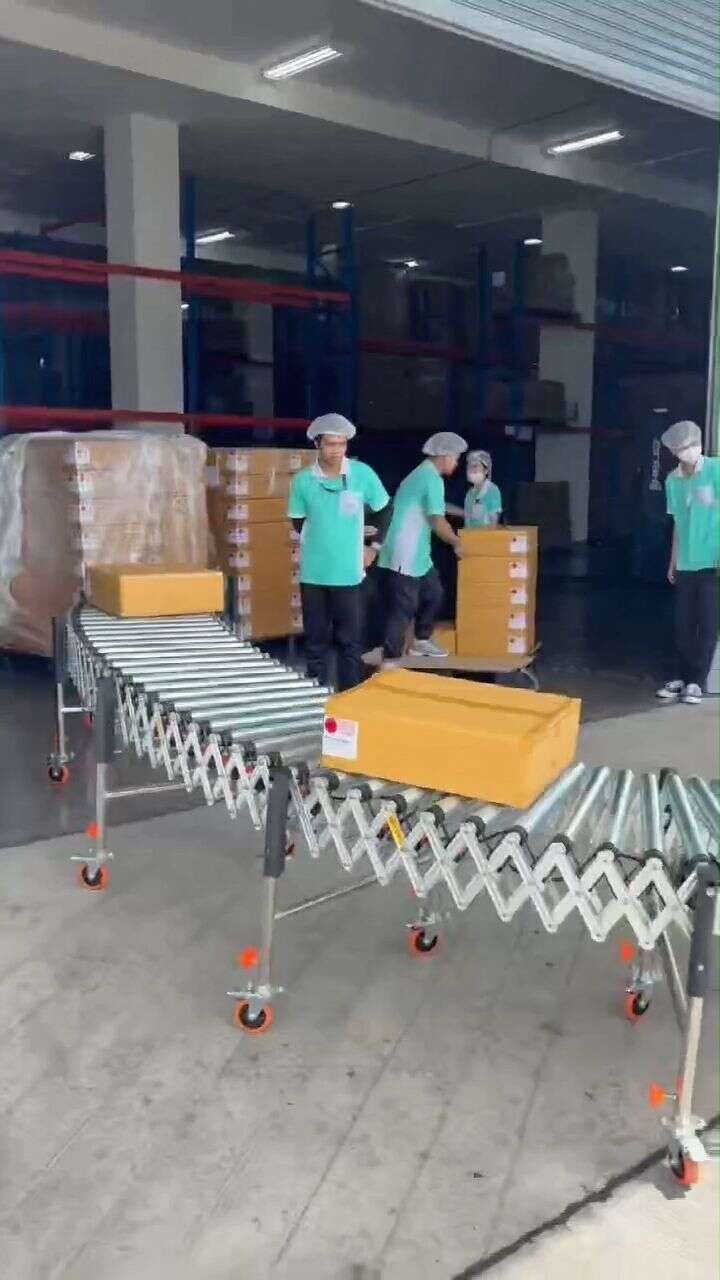

Cardboard Boxes Roller Medium Incline Loading Conveying Factory Finished Goods Warehouse-cover

The core advantage of this process lies incontinuous conveyingandhuman-machine collaboration. Rather than pursuing full automation, it uses equipment to take on long-distance, repetitive conveying work, freeing human labor from heavy handling and allowing staff to focus on the connection between loading and unloading and stacking, achieving an efficiency boost of "1+1>2." This is consistent with the philosophy advocated in our Finished Goods Warehouse Efficient Loading Solution.

Analysis of the Solution's Core Advantages

1. Extremely High Layout Flexibility

Multi-Wedge Belt Powered Roller Conveyor supports flexible turning designs and can perfectly adapt to needs such as "going around columns" and "avoiding racks" in complex warehouse environments, extending the conveying network to every required shelf position. This is difficult for fixed conveying equipment to achieve.

2. Significantly Reduced Labor Intensity

Workers only need to place goods at fixed loading points, without pushing pallet jacks or relying on forklifts for long-distance transport. Workers inside the truck also do not need to frequently climb in and out of the compartment to move goods, improving operational safety.

3. Greatly Improved Loading Efficiency

The conveyor line provides a continuous supply of goods, eliminating the time gaps caused by forklift round trips and waiting in the traditional mode, so the loading process proceeds almost without interruption and the loading time per vehicle is significantly shortened. This mode of improving efficiency through equipment combination is also fully reflected in the Warehouse Loading Efficiency Improvement Solution.

4. Protecting Goods and Packaging

The roller conveyor runs smoothly and has little impact on boxed food ingredients, effectively preventing packaging damage or content damage that may occur during handling and ensuring the product's ex-factory quality.

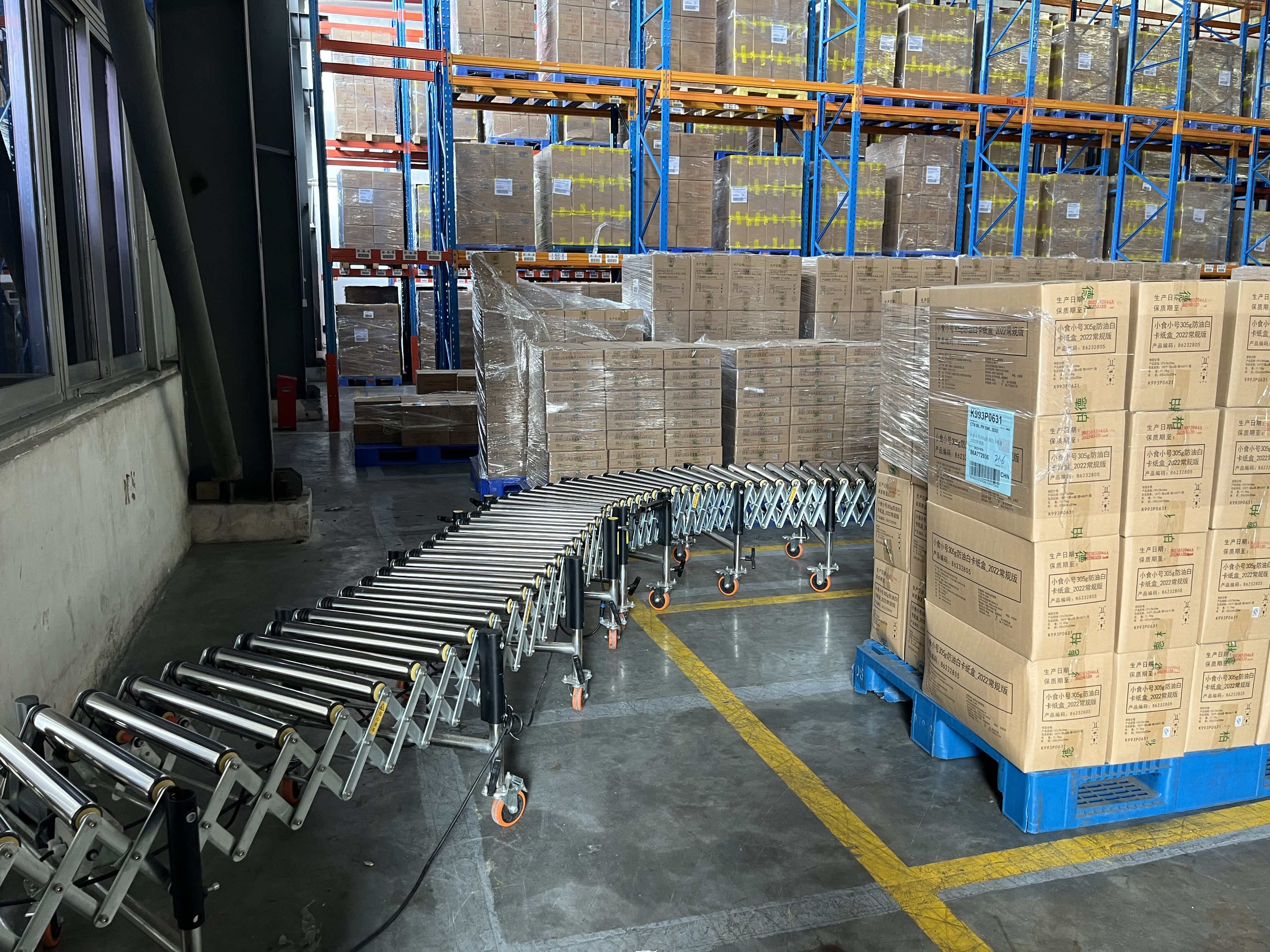

Roller Conveyor at a Warehouse Turning Point

Conclusion

For industries with large warehouses and high throughput, such as food ingredients, daily chemical products, and finished goods logistics, this combination solution of "long-distance ground roller line + Incline Conveyor + in-truck extension line" is an effective way to break through loading bottlenecks. By selecting and arranging equipment appropriately, it efficiently connects scattered warehouse operation points with centralized loading points, achieving a step-change improvement in logistics efficiency without significantly altering the warehouse structure. This solution proves that the proper application of conveying equipment is a key investment in improving the loading and unloading efficiency of traditional warehouses.
