How to choose a Medium Hydraulic Conveyor, and which goods and site layouts it suits

If the task is only short-distance transfer, flat-area turnover, or there is no fixed height difference or docking requirement on site, this kind of equipment usually does not need to be considered first. When Nalisen (Nali Conveying) makes an on-site assessment, the focus is also first on whether it is necessary, and then on how to arrange it.

What kind of loading and unloading site is the Medium Hydraulic Conveyor suitable for?

It is more important to first determine whether the site really needs incline transfer than to look directly at the equipment parameters. What many purchasers first focus on is length, load capacity, and lifting height, but what really determines suitability is whether there is a persistent height difference and a break in flow on site.

Common suitable scenarios include:

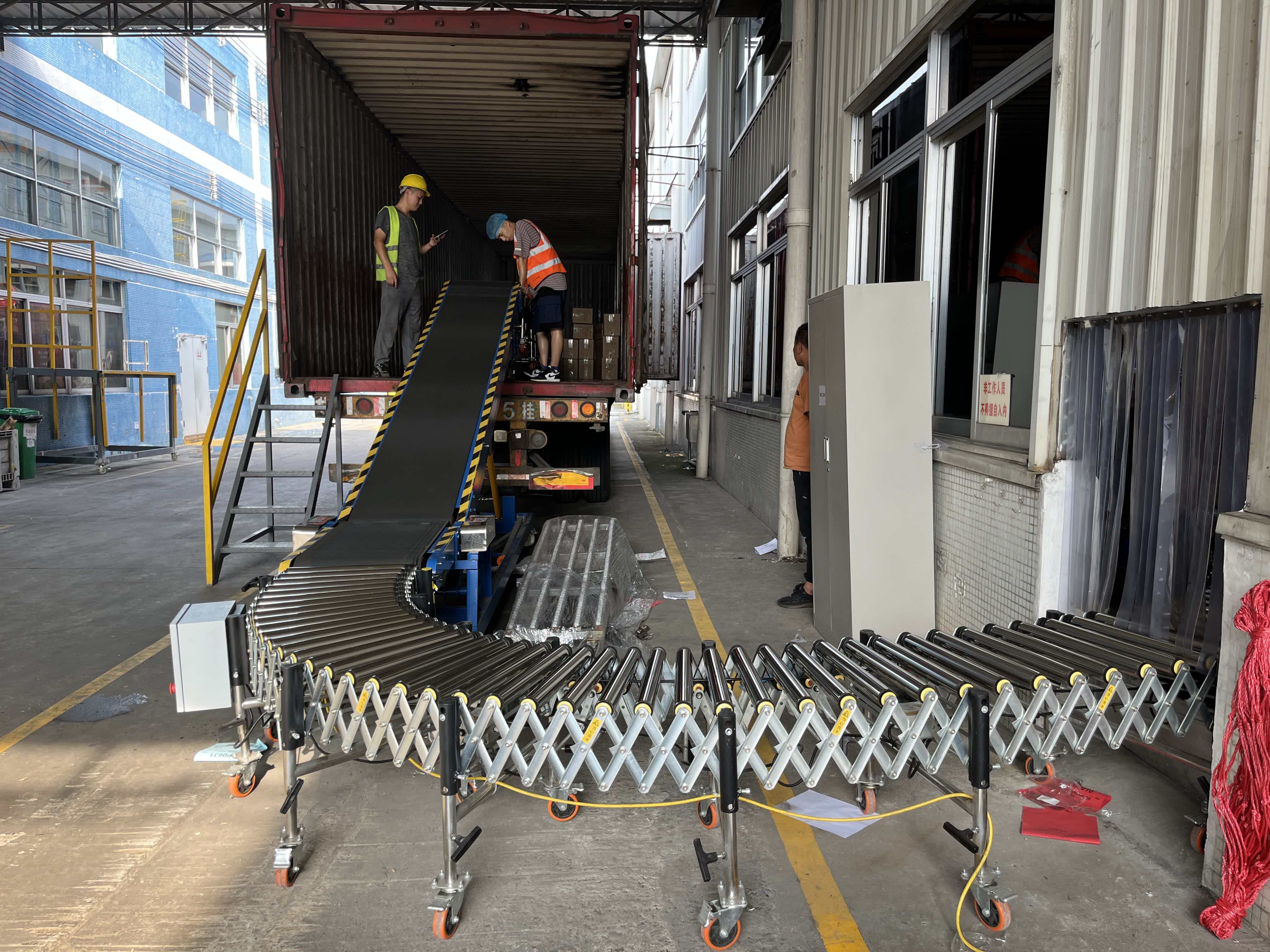

• There is a height difference between the ground and the truck compartment, and goods need to be conveyed from the loading and unloading area into the compartment or from the compartment to the ground
• There is a fixed height difference between the warehouse dock and the temporary stacking area, and goods need frequent uphill and downhill connection
• A continuous transition is needed between the production line, packaging line, sorting line, and temporary storage area, rather than manual handling one piece at a time
• Materials are conveyed from low-level storage locations, underground spaces, or mezzanine platforms to higher areas
• The volume of goods is not extremely large, but loading and unloading happen many times a day, and manual handling efficiency and safety cannot keep up

If the site only involves flat conveying, with no obvious height difference, or if goods only need short-distance transfer on the same level, then it is often more practical to first consider flat conveying, turnover carts, and forklift route optimization. When you need to further compare the boundary between truck loading and the Hydraulic Conveyor, you can also refer to Telescopic Conveyor loading vs Hydraulic Conveyor: selection comparison and combination boundaries The value of the incline conveyor lies in solving the problem of "unequal heights, " not in replacing all handling equipment.

It is also important to distinguish between "temporary use" and "fixed use." Some sites increase volume temporarily during peak season and return to normal processes during the off-season; others are used on a fixed daily basis and connected to the line for the long term. The former places more emphasis on equipment mobility, flexible arrangement, and installation speed, while the latter places more emphasis on stability, fixed foundations, and ease of long-term maintenance. Different scenarios require different selection approaches.

What kinds of goods are more suitable for the Medium Hydraulic Conveyor?

Not all goods are suitable for direct uphill conveying. The Medium Hydraulic Conveyor is more suitable for goods with relatively stable bottoms, clear load-bearing surfaces, and the ability to maintain posture on the incline. When selecting a model, first look at the form of the goods, then at the packaging method and center-of-gravity distribution.

More commonly suitable goods include:

• Boxed goods: cartons, turnover boxes, packaging boxes, etc. The bottoms are relatively flat, making continuous conveying easier
• Bagged goods: for example, woven bags or composite bags of grain, feed, or chemical raw materials. They can be used within the model boundaries, but on-site verification is needed based on single-item weight, bag stability, and site anti-slip conditions
• Turnover crates and turnover boxes: the bottom shape is regular, making guidance and positioning easier
• Pallet goods: especially when the pallet bottom is flat and used together with a forklift or pallet truck
• Palletized goods of medium weight: if they have been stably consolidated by means of boxes, frames, crates, and so on, they can also be considered

The main situations requiring caution fall into four categories:

1. Uneven bottom
   For example, protruding shapes, inconsistent feet, or too small a local load-bearing area can easily cause shaking or uneven loading on the incline.

2. Prone to rolling or tipping
   For example, drums, cans, long and narrow items, or goods with a high center of gravity can easily become unstable when going uphill if there is no guidance or positioning.

3. Prone to scattering or spilling
   For example, if the packaging strength is insufficient, the seal is not secure, or powdery or granular materials are exposed, vibration on the incline may cause scattering.

4. Sensitive to impact and posture changes
   If the goods themselves are sensitive to vibration, shaking, or tilting, they may not be completely unsuitable, but the slope, transition sections, and surface treatment all need to be considered together.

Whether goods are suitable cannot be judged by single-item weight alone; total volume during continuous conveying, center-of-gravity position, and worst-case operating conditions also need to be considered. For example, with the same 30 kg, some cartons are very stable, while some bagged goods, although usable within the boundary, still need key verification for slipping risk at corners or transition points. What truly affects on-site use is not just "how heavy, " but "how stable.".

The comparison table below can help the site make a quick initial judgment:

Goods type	Suitability level	Key focus points	On-site recommendation
Boxed goods	High	Flat bottom, stable stacking	Suitable for continuous inclines, but pay attention to smooth transition sections
Bagged goods	Usable, but on-site verification is required	Whether it slips, whether bags break, unit weight	Determine based on packaging strength, anti-slip measures, and the maximum unit weight
Tote crates/tote boxes	High	Whether the bottom is regular and whether the center of gravity is too high	Suitable for frequent turnover scenarios
Palletized goods	High	Pallet quality, fork clearance	Suitable for use with forklifts and pallet jacks
Round drums/round cans	Medium to low	Anti-rolling, anti-shifting	Guidance and positioning are required; it cannot rely on the slope surface alone
Loose unpackaged materials	Low	Prevent scattering and slipping	Usually consolidate first before considering machine loading

If the bottom of the goods is very irregular, or if they are prone to shifting during conveying, packaging and consolidation methods should usually be resolved first before considering the equipment itself. Otherwise, even if the equipment is suitable, jams or drops are still likely on site.

What dimensions must be confirmed on site first to know whether the layout is feasible?

Many pieces of equipment are only found to be "fit to install but not fit to use" after they are bought back. The problem is often that not all dimensions were measured. For an incline conveyor, you should not look only at one length figure; you need to consider the height difference, incline length, inlet and outlet width, and the interface relationship together.

At least the following four dimensions must be confirmed:

1. Height difference between the feed end and the discharge end
   This is the most basic data. The height difference determines how much lifting work the equipment needs to handle, and also whether the slope will be too steep.

2. Available length
   Whether there is enough straight-line layout space on site, and whether the incline and transition sections can be fully accommodated; you cannot look only at the two endpoints.

3. Available width
   Width affects not only the equipment itself, but also pedestrian passage, forklift turning, tote cart turning, and temporary storage.

4. Interface positions at both ends of the equipment
   Whether the feed end can connect to the floor turnover area, forklift pickup point, or temporary storage area, and whether the discharge end can connect to the warehouse line, loading opening, or platform opening.

Also pay attention to the incline angle. The greater the slope, the higher the requirements for cargo stability and surface friction, and the more likely it is to compress the on-site passage. In many cases, the issue is not that installation is impossible, but that after installation there is too little operating space left, making loading and unloading difficult, personnel positioning dangerous, and turning inconvenient.

When measuring on site, it is recommended to record the following together:

Measurement item	Why it needs to be checked	Common Oversights
Height Difference	Determines the lifting task	Only measuring the starting point, not the actual elevation at the endpoint
Usable Length	Determines whether the slope can be laid out	Ignoring buffer sections and transition sections
Usable Width	Determines whether there is enough operating space	Only looking at the equipment width, not the passage width
Inlet and outlet connection points	Determines whether goods will get stuck	The height is right, but the horizontal position is wrong
Surrounding Turning Radius	Determines equipment placement and turning around	Forklifts, pallet jacks, and transfer carts cannot turn around
Personnel standing area	Determines loading and unloading safety	The loading and unloading position is crowded out by the equipment

If on-site space is very tight, the issue is often not whether it can be fitted in, but whether operations can still run smoothly after it is fitted in; you can also combine this with Hydraulic Conveyor Loading and Unloading Truck: A Flexible and Efficient Mobile Loading and Unloading Solution and look at the on-site layout approach together. Before laying it out, draw the aisles, turns, and turning-around areas first; that is more useful than looking at the equipment dimensions alone.

How do you tell whether the load capacity and operating cycle are sufficient?

Load capacity should not be judged by single-item weight alone. You also need to consider the cumulative load during continuous operation, the feeding method, and instantaneous impact. At many sites, everything seems fine during trial runs, but once peak demand arrives, the speed can no longer keep up, goods start piling up, the slope shakes, or the equipment stops frequently.

At the site, you should confirm at least four things:

• What is the maximum weight of a single item?
• About how many items pass through per hour?
• During peak periods, is feeding continuous or intermittent?
• Is there concentrated stacking, uneven loading, or sudden pushing and dropping?

If it is continuous conveying, the equipment places more emphasis on stable operation and cycle matching; if it is used intermittently, although the requirements for continuous cycle timing are not as high, frequent starts and stops and a lot of manual coordination will also increase the likelihood of impact and operator error.

The three common load conditions at the site can be understood like this:

1. Stable, even feeding
   Goods are similar in size, arranged neatly, and the cycle is relatively steady. This is the easiest type to match.

2. Peak concentrated feeding
   The volume is usually not large, but during loading or outbound shipping it comes in all at once, so the equipment needs a certain buffering capacity.

3. Uneven or irregular feeding
   The goods are not uniform in shape, and operators place them at different angles. This type places higher demands on guidance and limiting.

If the on-site loading and unloading actions themselves are very unstable, for example the placement position is often offset or the goods are sent onto the slope without being aligned, then even if the equipment parameters are sufficient, edge catching, skewing, and surface wear can still easily occur. Therefore, cycle timing is not only a matter of equipment capability, but also related to on-site operating standards.

When laying out a Hydraulic Conveyor on site, how should the inlet and outlet be connected to avoid goods getting stuck?

Many jamming problems do not happen in the middle of the incline, but at the transition points at both ends. In other words, when goods move from the floor onto the incline, or from the incline to the discharge end, edge catching, skewing, rubbing, and stalling are most likely to occur.

When laying out the equipment, focus on four points:

1. The feed end should be smooth

The feed end is best arranged to form a smooth transition with the floor turnover area, forklift unloading area, and temporary storage area, avoiding any obvious step. When goods enter the incline, if they have to be lifted or pushed by hand, efficiency drops and misoperation becomes more likely.

2. The discharge end should be accurate

The discharge end should align with the warehouse line, truck opening, platform edge, or temporary storage area, so that goods do not need to be repositioned after climbing up. Repositioning may not seem difficult, but it can easily create congestion during peak hours.

3. Leave room for the transition section

If goods need to slow down, buffer, or correct direction before and after the incline, the two ends of the equipment should not be set too tightly. If necessary, reserve space for guiding, buffering, or short-distance docking so the goods can stabilize before entering the next section.

4. Keep the loading direction consistent

If the same unit is used left-to-right today and then reversed tomorrow, it may still work, but the operating routine can easily become confusing. For sites with frequent use, keep the in-and-out direction, operator position, and aisle markings fixed as much as possible.

Common signs of poor docking include:

• The goods skew to one side as soon as they go up the incline
• The pallet corners hit the side guard or structural parts
• After reaching the top, the goods are not aligned with the next station
• Forklifts, pallet jacks, or turnover carts interfere with one another when entering or leaving

Many of these problems cannot be solved by the equipment alone. They happen because the upstream and downstream processes were not considered together during the layout stage. The equipment is only one link in the chain; what really determines smooth flow is the interface at both ends.

Which site conditions affect equipment stability and safety?

Hydraulic Conveyor looks like it simply "moves goods upward, " but in practice, the factors that really affect stability are often the floor, the environment, and operating habits.

Start with the floor:

• Whether the floor is level, and whether there are any obvious settlement issues, cracks, or inconsistent slopes
• Whether the equipment can be stably supported where it is placed, without shaking or shifting
• Whether the floor load-bearing capacity meets the long-term use requirements of the equipment and the goods
• Whether there are necessary fixing conditions to prevent movement during operation

Then look at both sides of the incline:

• Whether an anti-shift structure is needed
• Whether anti-slip treatment is needed
• Whether limit stops are needed to prevent goods from deviating out of the channel
• Whether there is enough lateral clearance to prevent outward expansion and collisions

Then look at the environment:

• Whether outdoor rainwater has an effect, and whether moisture will reduce friction
• Whether there is oil, dust, or debris that affects running smoothness
• Whether there are external disturbances such as temperature differences, wind, or vibration

Finally, look at the operators:

• Whether the loading and unloading positions allow the condition of the goods to be seen clearly
• Whether skewing, edge catching, or buildup can be detected in time
• Whether there are clear procedures for directing, stopping the machine, and clearing obstructions

If operators cannot clearly see the entry and exit points, or if their position is blocked by the equipment, small problems can easily snowball into bigger ones. For medium-sized equipment, safety depends not only on the structure, but also on whether site management is practical and easy to follow.

What should be confirmed with the site before procurement?

Before procurement, it is best not to judge based on just one "equipment size." Instead, confirm the goods, the site, and the way it will be used together. This can greatly reduce the chances of buying the wrong model, finding it cannot be installed, or discovering it is awkward to use.

It is recommended to confirm at least the following checklist before procurement:

Item to confirm	What needs to be clarified	What the result affects
Cargo dimensions	Length, width, height, and whether they are uniform	Equipment width, side guards, and guiding method
Cargo weight	Weight per piece, maximum weight, total weight	Load capacity and operating pace
Bottom shape	Flat, pallet, round bottom, irregular bottom	Whether it is prone to uneven loading or jamming
Packaging method	Boxed, bagged, crated, loose pieces	Conveying stability and anti-slip requirements
Height difference	Starting point, ending point, actual height difference	Equipment lifting capacity and ramp length
Aisle dimensions	Width, turning space, and reversing space	Whether it can be arranged and operated smoothly
Connection position	Relationship with the truck, line body, and platform	Whether entry and exit are smooth
Usage frequency	How many shifts per day, how many times per hour	Whether continuous operation is required
Operating method	Manual, forklift, pallet jack, automatic connection with the line body	How to handle the interfaces at both ends
Installation conditions	Fixed, temporary, movable	Equipment structure and layout plan

If this information is not confirmed clearly, three problems are likely to arise later; before implementation, you can also take a look first Hydraulic Conveyor ground loading combination methods and connection ideas.

• The equipment parameters look adequate, but there isn’t enough space on site.
• There is enough space on site, but loading and unloading are not smooth.
• The goods can move through, but the cycle time can’t keep up during peak periods.

The differences among temporary use, fixed installation, and possible future relocation are significant. Temporary use values flexibility most; fixed installation values stability most; and if it may need to be moved later, handling, disassembly, and re-positioning should all be considered in advance. Clarifying these boundaries before procurement will save a lot of time during implementation later; if you need to learn about related processing services, see CNC Machining.

In what situations is it not recommended to choose Medium Hydraulic Conveyor directly?

Medium Hydraulic Conveyor is not the universal answer for every site. In the following situations, it is usually not recommended to deploy this type of equipment right away; instead, the process should be reassessed or the site should be modified first.

1. The goods are extremely heavy, very long, and obviously unevenly loaded

If the goods themselves are very long, have an unstable center of gravity, or are always to one side during loading and unloading, and the site does not have stable guiding conditions, it is very easy to lose balance during the climbing process. In this case, it is more important to first solve the issues of goods shaping, palletizing, or guidance.

2. Slope, length, and aisle conflicts

If the site must compress pedestrian aisles, forklift aisles, or turning space in order to accommodate the equipment, future use will be very awkward. The equipment can be installed, but the site will become difficult to use and may even affect overall efficiency.

3. Only short-distance transfer is needed

In some sites, goods only need to be moved from one side to the other, with no obvious height difference and no need for continuous climbing. In this case, the value of a climbing machine is not high, and it mostly just adds equipment cost and floor space.

4. The space is too narrow or the ground conditions are poor

If the ground is uneven, cannot be fixed, and there is not enough operating clearance around it, both equipment stability and safety will be affected. Rather than forcing the machine into service, it is better to first address the ground, route, and interface.

5. The goods require very smooth, low-impact transfer

Some precision parts, fragile items, and shock-sensitive goods are very sensitive to changes in the slope surface. This does not mean they cannot be used at all, but buffer, shock absorption, transition, and anti-slip conditions must be evaluated first; you cannot judge only by whether it can lift and lower.

In other words, selection is not about bigger being better, nor about being able to lift higher being better, but about whether the site process truly needs the step of "climbing transfer." If the demand boundaries are unclear, the equipment can easily become a space-consuming link that increases management difficulty.

Pre-purchase confirmation / document checklist

Before formally purchasing Medium Hydraulic Conveyor, it is recommended to confirm the following information together with the site at one time:

• Goods type, dimensions, unit weight, and maximum weight
• Packaging method, base shape, and whether the center of gravity is high
• Hourly throughput, daily operating hours, peak cycle time
• Actual height difference between the feed end and the discharge end
• Available length, available width, and aisle conditions on site
• Connection points at both ends of the equipment, turnaround area, and return area
• Whether it is for temporary use, fixed installation, or needs to be moved later
• Ground flatness, load-bearing conditions, and fixing conditions
• Whether there is rainwater, oil contamination, dust, or other environmental impact
• Personnel standing positions, line of sight, and safe operating space

Once this information has been fully confirmed, then review the equipment proposal; the judgment will be much clearer: whether it should be selected, how large it should be, how it should be arranged, and how the two ends should be connected will all be easier to implement.
