Rubber-coated powered rollers for conveying bagged goods

Transport Challenges for Flexible Packaging and Bagged Items

In warehousing and sorting operations, the need for transporting bagged items on powered rubber-covered roller conveyors is becoming increasingly common: soft-sided parcels, polybags, and irregularly shaped items often struggle to move smoothly on traditional roller lines.

Common instability issues for this type of cargo include:

• Sagging between rollers: insufficient bottom rigidity makes it easy to form a "hammock" effect when crossing roller gaps, resulting in discontinuous movement
• Deviating, rolling, or shifting: irregular shape and rapidly changing force points make it easy to drift off center during movement
• Slipping: when the outer packaging surface is relatively smooth, there is insufficient traction on the roller surface, causing uneven conveying that "slips a bit, then stops a bit"
• Increasing risk of jamming and blockage: sagging combined with uneven movement can easily cause the item to be pulled into gaps, stuck, or piled up

These issues not only affect throughput, but also lead to frequent line stoppages, increased manual intervention, and a higher risk of product or packaging damage.

Why Standard Metal Roller Conveyors Often Fail

When the conveyed items change from rigid cartons to bagged goods, soft packages, and irregular items, standard metal roller conveyors often expose shortcomings in two mechanisms:Insufficient frictionandstructural risks caused by roller gaps.

Slippage caused by insufficient friction

The surface friction of conventional metal rollers is relatively low, which is more suitable for cartons with flat, rigid bottoms, but not ideal for flexible packaging:

• Plastic bags and glossy packaging are more likely to slip on metal surfaces
• The speed of the goods may become inconsistent: they first slide, then get "caught, " causing an unstable flow rhythm
• It is difficult to keep consistent spacing between items, affecting downstream diversion, counting, or manual handling
• On inclined sections, where friction is needed to maintain stable movement, slippage becomes even more pronounced

Jamming and packaging stress caused by roller gaps

The spacing between standard rollers introduces additional risk, especially for flexible or deformable packaging:

• Soft packages sag into the gaps between rollers, creating an unsupported discontinuous surface
• Sagging may cause the items inside the package to shift, or even lead to compression and damage
• The edges of flexible packaging may be pulled into the gaps, causing jamming
• Unstable movement places additional pulling force and impact on packaging seams

As the cargo weight increases, sagging becomes more pronounced, which in turn leads to more frequent blockages and manual intervention.

Key Design Points of Powered Rubber-Covered Roller Conveyor

To address the typical pain points of "sagging, slipping, and easy jamming, " Powered Rubber-Covered Roller Conveyor uses rubber-covered rollers and a more continuous contact surface to make it easier for soft packages, bagged items, and irregular items to achieve stable conveying conditions.

The Role of PVC Rubber-Covered Rollers

The key differences of the Powered Rubber-Covered Roller Conveyor lie in PVC rubber-covered rollerWhen in contact with packaging, the rubber layer provides surface characteristics better suited to soft-pack items:

• Stronger grip: Compared with metal rollers, the rubber-covered surface has higher friction, which reduces slippage
• Gentler contact: The surface has a slight degree of elasticity, which cushions minor impacts and reduces the effect on the contents
• More continuous contact: When handling irregular bottoms or soft-bottom packaging, it is easier to maintain stable contact
• Noise reduction: The rubber covering reduces rolling noise from goods during conveying
• Static reduction: The PVC rubber covering helps reduce the buildup of static electricity generated by some packaging materials during conveying (as stated in the original text)

Drive and structural highlights (presented as product-data-level information)

To improve stability and adaptability, the Powered Rubber-Covered Roller Conveyor is usually designed with targeted drive and structural features:

• Multi-wedge belt drive: Used for power transmission and supports continuous operation
• Adjustable speed: The conveying speed is adjustable, with a maximum of 40 m/min(subject to product specifications)
• Smaller roller pitch: Standard roller pitch 57 mm, and by reducing the gap, soft-pack sag is minimized and pass-through performance is improved

For more detailed configuration and selection guidance, refer to Practical Solutions for Conveying Soft-Pack Bags with a Powered Rubber-Covered Roller Conveyor.

User-friendly configurations

In warehouses and logistics sites, the range of soft packaging changes frequently, so ease-of-use configurations are equally important:

• Expandable section: Convenient for on-site adjustments based on changes in distance and workstations
• Optional width: Adaptable to bagged items and soft packages of different sizes
• Control panel: Supports forward/reverse, emergency stop, and speed adjustment
• Casters and brakes: Convenient for moving and positioning when a mobile setup is needed

Applicable scenarios and usage reminders

Applicable scenarios

Powered Rubber-Covered Roller Conveyor is especially suitable for processes with a high proportion of soft packaging and unstable package shapes, for example:

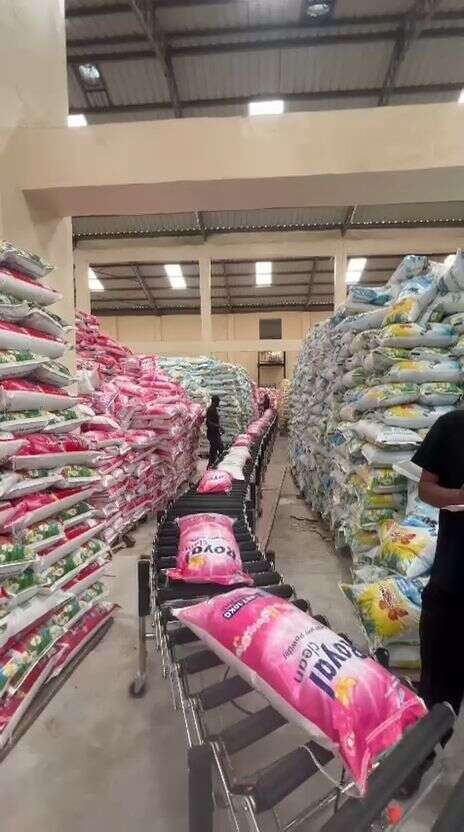

• Postal and express centers: large volumes of polybags, soft courier bags, and irregular parcels
• Agriculture and food processing: bagged goods, flexible woven sacks, etc. (such as 25 kg bagged feed loading and unloading case）
• E-commerce returns processing: varied packaging, inconsistent shapes, and temporary wrapping or irregular outlines

For a more stable solution for bagged goods conveying, please refer to Powered rubber roller conveyor article for 50 kg bagged goods.

Usage reminder: matching and maintenance are equally important

To make the Powered Rubber-Covered Roller Conveyor truly stable for bagged goods conveying, the on-site implementation should focus on two key points:

• Matching points: Based on the shape of the bottom of the goods and the surface material, choose the roller spacing and running speed appropriately to avoid secondary slipping or accumulation caused by a mismatch between speed and contact conditions
• Routine maintenance: Clean the roller surface regularly; check the tension of the drive belt; monitor whether the PVC rubber covering is worn and address it in time

If you need to further combine other conveyor equipment in loading, unloading, and transfer lines, please refer to the extended reading below:

Hydraulic Incline Conveyor + Powered Rubber-Covered Roller Conveyor platform-free loading and unloading solution
