Multi-wedge belt rollers and Medium Hydraulic Conveyor export packaging and delivery

Multi-wedge belt powered roller conveyors and medium ramp conveyors are often shipped together to overseas warehouses and distribution centers. Understanding the factory crating method, manual quality control process, and the unpacking, installation, and deployment procedures upon arrival can reduce handling downtime and mitigate risks during transport and use.

Exports

Export equipment undergoes repeated handling and stacking during long-distance sea, road, or rail transport. Multi-wedge belt powered roller conveyors and medium ramp conveyors are usually packed in dedicated export crates either as whole units or disassembled, with manual packing, reinforcement, and final inspection.

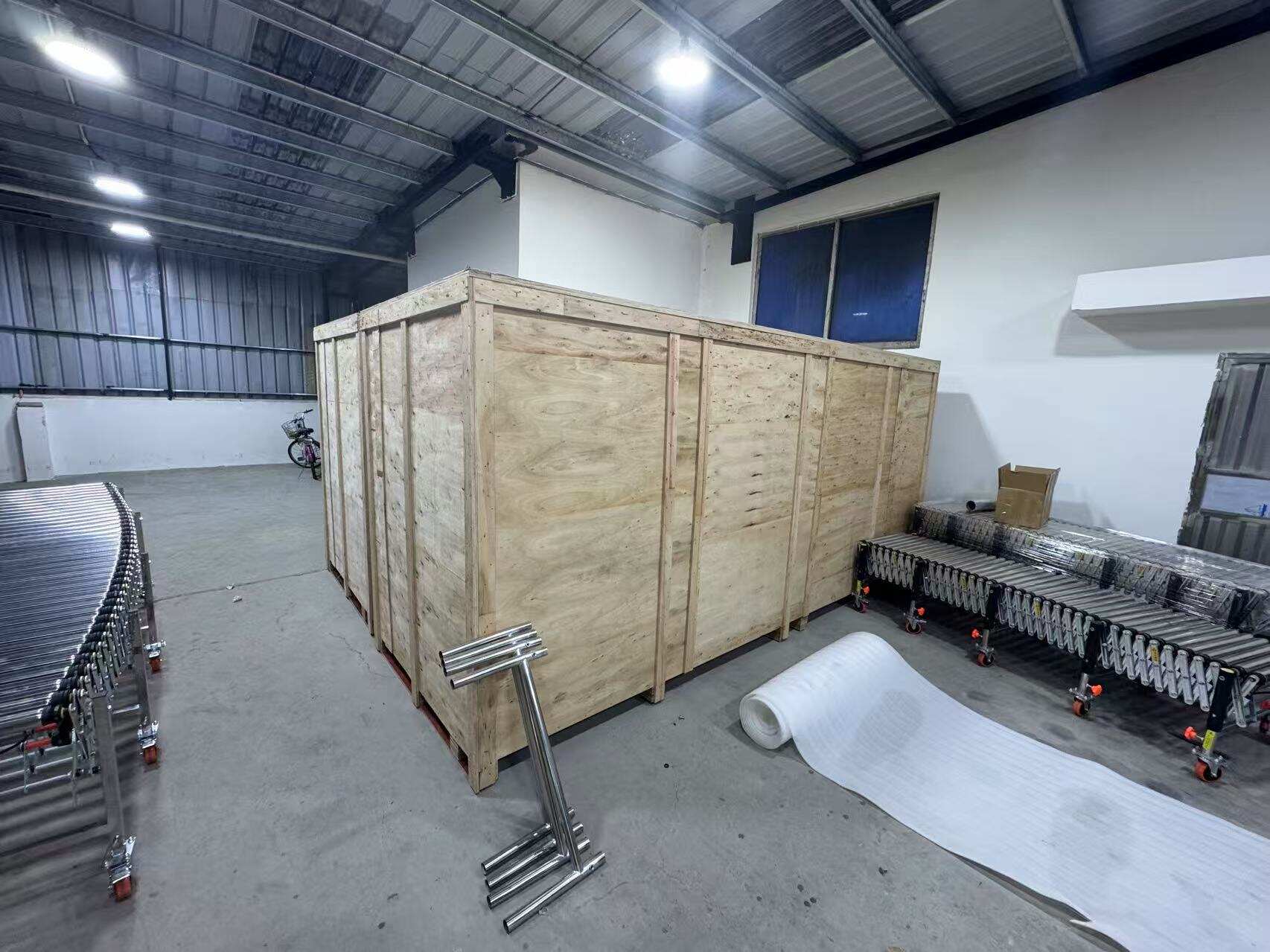

Structural Design Requirements for Export Crates
Export crates must ensure overall rigidity and impact resistance to withstand repeated handling and stacking pressure. Common approaches include:

• Reinforcing the crate with frames and beams to improve load-bearing capacity so the case resists deformation during forklift or hoist handling;
• Leaving space at the bottom for forklift tines to allow use with common handling equipment at ports and warehouses;
• Arranging internal support points according to the equipment's center of gravity, length, and width to avoid long overhangs or localized stress;
• For long equipment like multi-wedge belt powered roller conveyors, prioritize longitudinal supports combined with locating blocks to prevent lateral movement or rolling during transport.

Inside the crate, vibration-damping materials such as wooden blocks and cushions are arranged around the equipment shape to reduce vibration impact on key parts such as rollers, legs, and hydraulic components during long transport.

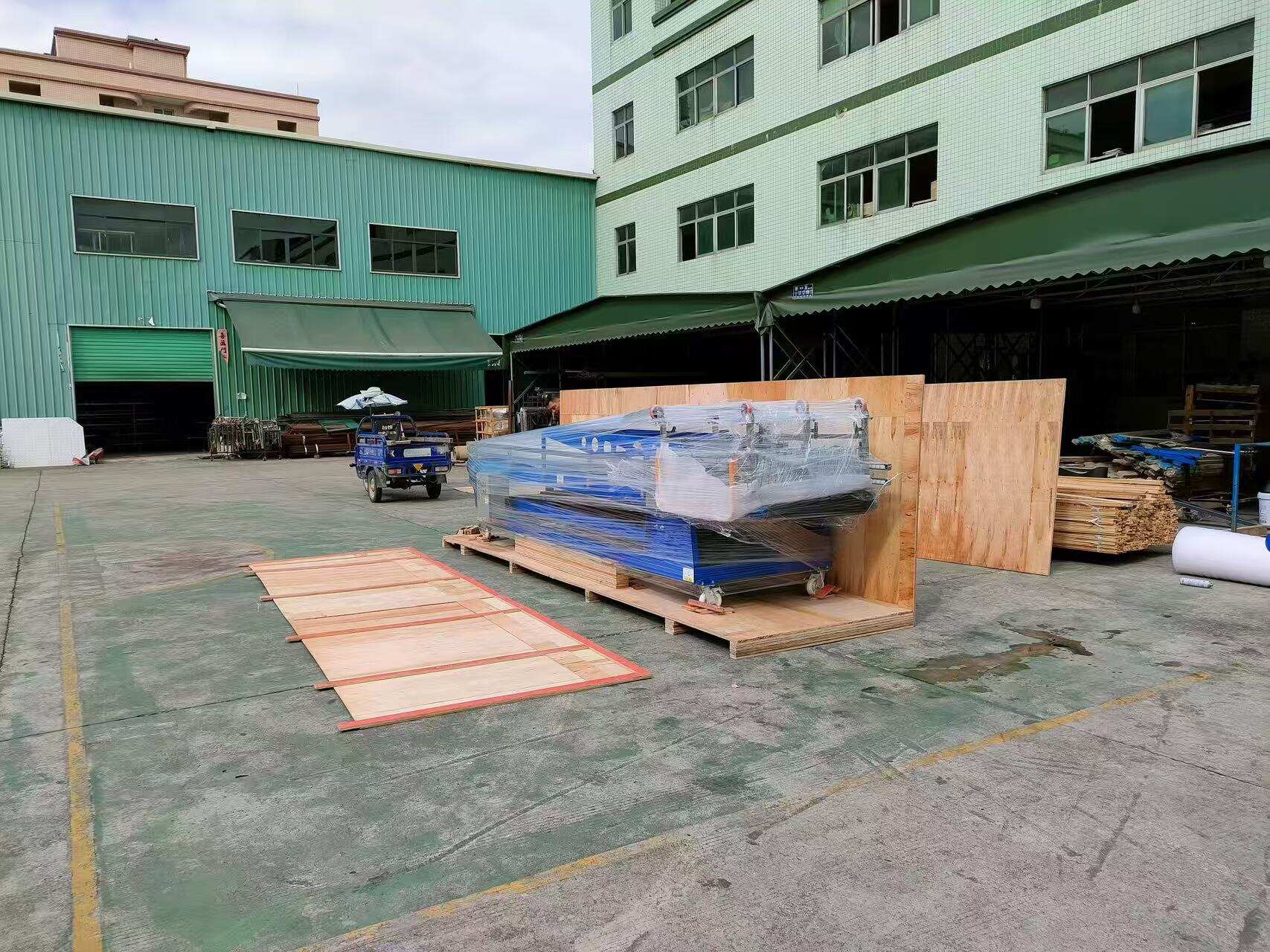

Key Quality Control Points in the Packaging Process
Export packaging is mainly manual, with key stages requiring dedicated inspection and confirmation, focusing on:

• Verifying the equipment list before crating to ensure components such as the multi-wedge belt powered roller conveyor body, legs, cables, and control box are complete; and that the medium ramp conveyor accessories (e.g., guardrails, cylinder protectors) are all accounted for;
• Adding proper fixation points between the equipment and the crate using wedges, straps, etc., to prevent shaking and avoid collisions between rollers and ramp platforms inside the case;
• Adding soft wrapping and isolation layers to easily scratched or collision-prone surfaces such as roller surfaces or exposed hydraulic cylinders;
• After internal reinforcement is complete, manually inspecting each screw, strap, and support block to ensure they are tightened in place;
• After the crate exterior is nailed or bolted closed, wrap it with film or waterproof layers to seal it, enhancing water and moisture resistance and reducing the risk of dampness during ocean transport;
• Sticking or spraying center-of-gravity, lifting point, and opening direction labels on clear spots of the crate to help overseas warehouses operate correctly during unloading.

Packaging and delivery process for multi-wedge belt powered roller conveyors

A multi-wedge belt powered roller conveyor typically consists of the driving section, middle section, legs, and electrical components. To meet export transport and on-site installation needs, split packaging is usually used, with manual segment packing, labeling, and securing.

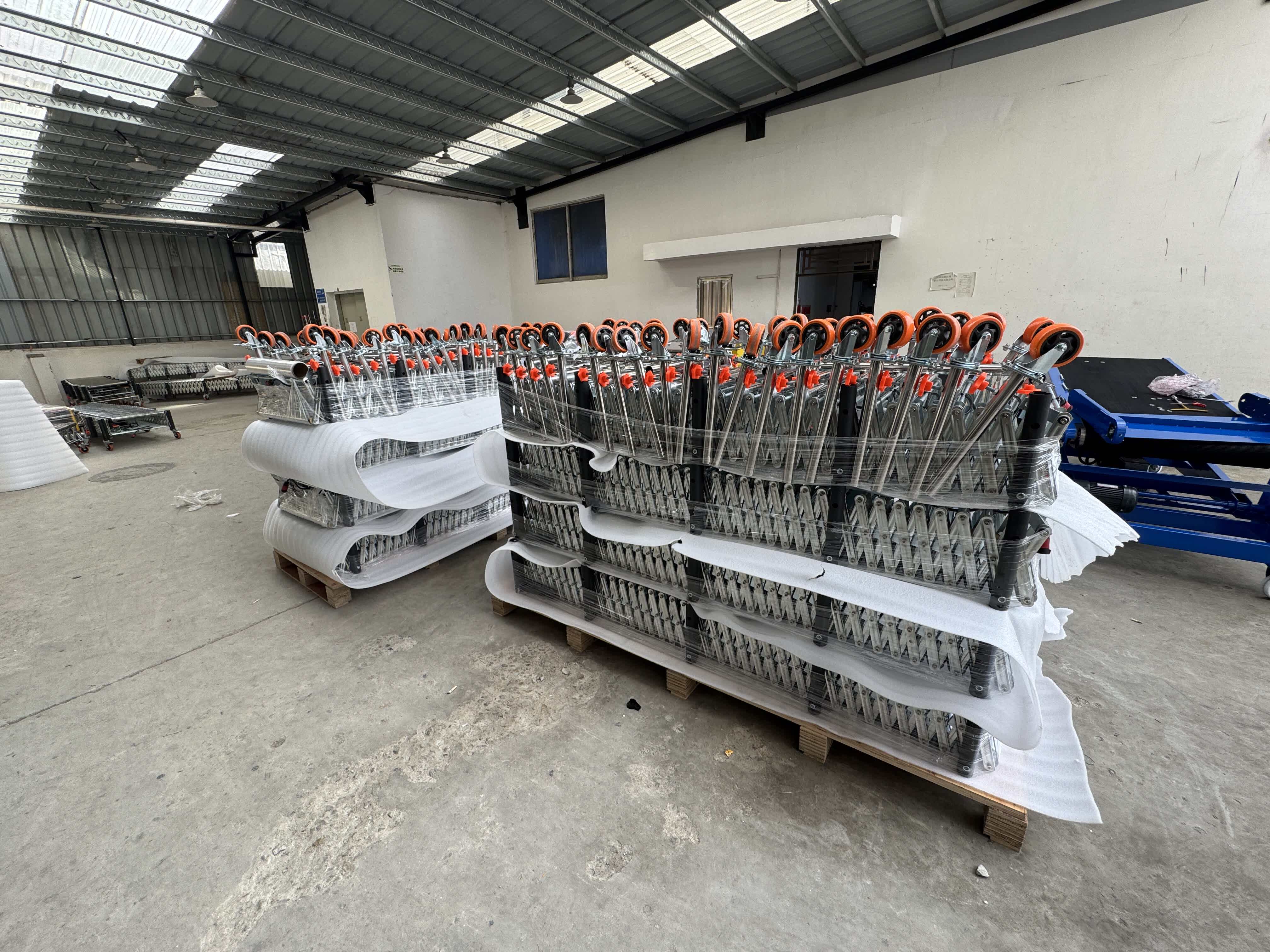

Packaging Specifications for Roller Conveyors

In export scenarios, multi-wedge belt powered roller conveyors are usually packed according to the principle of "conveyor body + legs and accessories in separate packages":

• Keeping the conveyor body intact reduces the amount of re-alignment and calibration required on site;
• Packing legs, connectors, cable trays, and other smaller components together in specified areas of the crate with clear labels;
• For the multi-wedge belt drive area, emphasizing protection of rollers and belt regions to prevent displacement from external pressure;
• Inside the export crate, install physical limits on both sides and the bottom of the conveyor body to prevent axial or radial movement of the long equipment during transport.

On the packaging floor, workers manually reinforce the equipment in the order of positioning, fixing, then cushioning based on length and weight. For cases exporting multiple conveyors together, the units and packing lists are numbered so customers can install them in separate zones at the overseas warehouse.

Installation and Use After Equipment Delivery

Since the main body of a multi-wedge belt powered roller conveyor is already commissioned at the factory, once it arrives on site the following manual steps usually suffice to put it into use:

1. Following the crate markings, choose the correct orientation to open and verify the equipment quantity and packing list;
2. Lift or forklift the conveyor body out of the crate to the designated location, taking care not to bump the rollers or electrical box;
3. Install the legs to the conveyor body following the provided diagrams and numbering, tightening the fasteners manually;
4. Use a spirit level or other simple tools to check the overall level and height of the conveyor, making fine adjustments via the adjustable legs if necessary;
5. Have a qualified electrician connect the conveyor's standardized power interface to the facility's power supply based on onsite electrical conditions;
6. After wiring is complete, first perform a no-load test to check that the multi-wedge belt drive runs smoothly and the rollers rotate in the correct direction, then gradually introduce cargo for trial runs;
7. When used together with a medium ramp conveyor, make minor height and angle adjustments at the interface to ensure smooth transition of goods between the two machines.

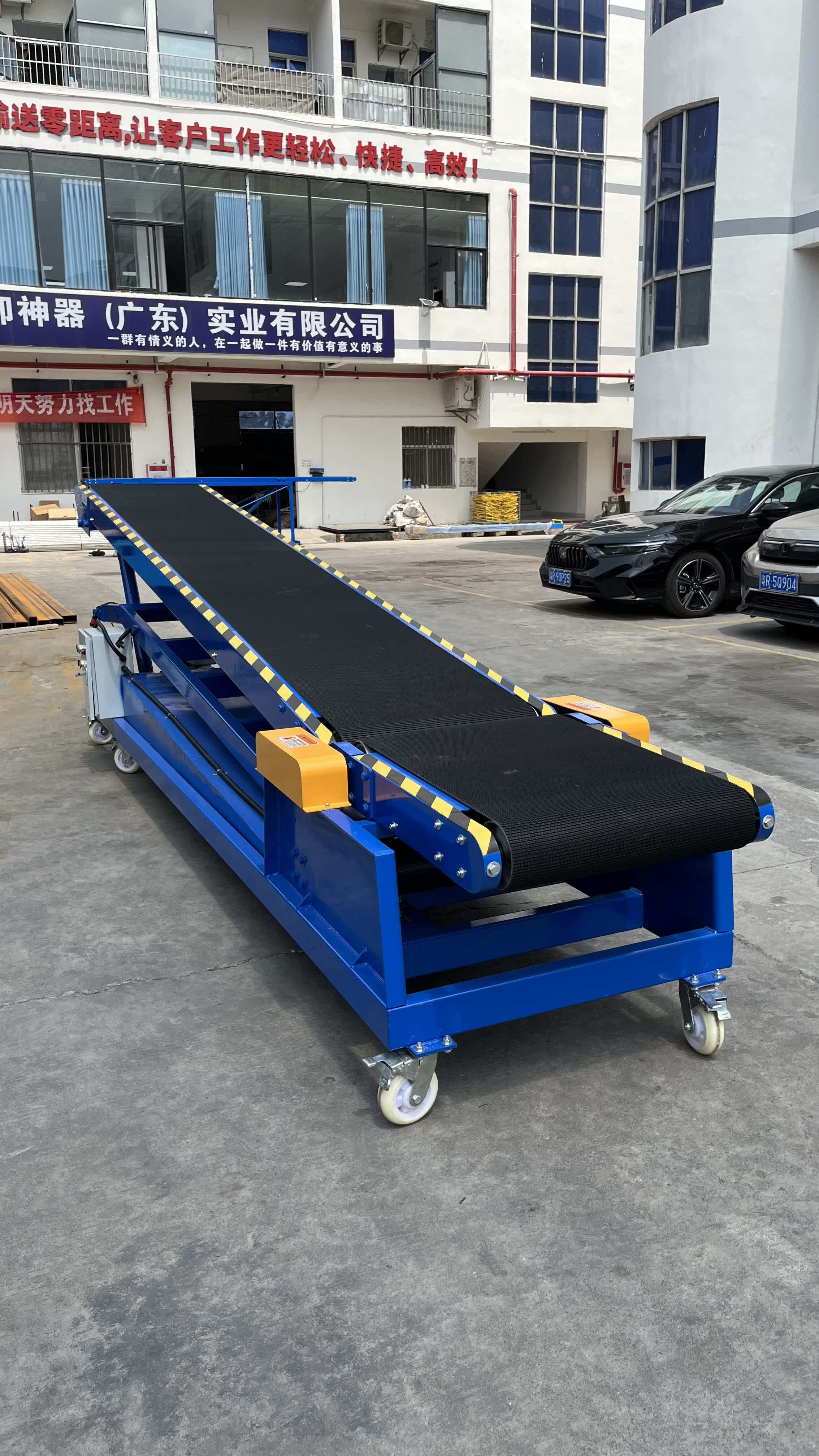

Advantages of shipping the medium incline conveyor as a complete unit and preparation for use

Medium incline conveyors are mostly used to bridge height differences between standard trucks, medium box trucks, and warehouse floors, and often paired with multi-wedge belt powered roller conveyors. For export operations, medium incline conveyors are usually shipped preassembled to reduce on-site assembly work for customers.

Advantages of Shipping Medium Ramp Conveyors as Complete Units and Usage Preparations

Medium ramp conveyors are usually used for height transitions between standard trucks, mid-size box trucks, and warehouse floors, often paired with multi-wedge belt powered roller conveyors. For export, medium ramp conveyors are generally shipped fully assembled to reduce onsite assembly for customers.

• Convenience of Shipping Fully Assembled Units
• Compared with split crating, medium ramp conveyors are more suitable for whole-unit packaging and transport, mainly due to:
• The factory completes the main structure and hydraulic system assembly and commissioning before shipment, reducing the need for overseas customers to dismantle and reassemble complex mechanisms onsite;
• The complete structure is designed for lifting and transport stability, making it easier to handle with forklifts or cranes at docks and warehouses;

In the assembled state, key internal components (such as cylinders and shafts) have clearer fixation points, making crate reinforcement easier;

Medium Ramp Conveyor

Medium Ramp Conveyor

1. Key Steps for Quick Operation
2. After the medium ramp conveyor arrives at the customer's site, the following steps are typically taken to prepare it for use:
3. Choose the appropriate unloading tools according to the crate labels and move the entire machine from the crate to a temporary clear area;
4. Remove transport reinforcements and protective materials, checking for any visible deformation or looseness caused by shipping;
5. Inspect key fasteners (such as pivot pins, guardrail mounts, support structures) according to the manual to ensure they are secure;
6. Push or hoist the ramp conveyor to the intended loading/unloading spot to align roughly with the truck bed, dock, or floor;
7. Have a trained person adjust the hydraulic or height mechanisms per the manual so the ramp platform matches the trailer floor height;

Your browser does not support video playback.

Efficiency of the Medium Hydraulic Conveyor in the Logistics Industry Video

On-site deployment suggestions for coordinated equipment use

The multi-wedge belt powered roller conveyor and medium hydraulic conveyor are often deployed together to link trailers with warehouse work areas. A reasonable layout and connection approach can significantly reduce the handling intensity per unit while maintaining manual involvement.

• On-site layout planning
• When planning the site solution, consider the following aspects:
• Clarify the main types of operating vehicles (such as the commonly used trailer lengths and heights) to determine the placement and usage frequency of the medium hydraulic conveyor;
• Use the upper or lower end of the hydraulic conveyor as a reference to plan the direction of the multi-wedge belt powered roller conveyor so that the cargo flow is clear and turns are minimized;

Illustration of loading and unloading solution with medium hydraulic conveyor and roller conveyor

Illustration of loading and unloading solution with medium hydraulic conveyor and roller conveyor

• Tips for coordinated equipment useWhen using the two pieces of equipment together, focus on connection stability and operator safety:
• Connection stability: At the connection between the medium hydraulic conveyor and the multi-wedge belt powered roller conveyor, use transition plates or fixed stops to reduce height differences and gaps, preventing cargo from getting stuck or tipping during the transition;
• Height and angle adjustment: When loading and unloading, the trailer heights may vary; manually adjust the height of the hydraulic conveyor first, then fine-tune the roller conveyor legs so that the cargo flow remains smooth;
• Reserved operating space: Reserve enough passageways on both sides of the hydraulic conveyor and around the roller conveyor so personnel can inspect along the line, straighten cargo, and deal with damaged packaging;
• Pre-operation inspection: Before each operation, ensure the hydraulic conveyor support mechanism is securely locked, the roller conveyor legs are stable, and the power cables are not pinched or creating tripping hazards;

Your browser does not support video playback.

1. Loading and unloading with height difference between hydraulic conveyor and roller line Video
   Frequently Asked Questions

2. What preparations are needed on-site before exporting the multi-wedge belt powered roller conveyor overseas?
   Confirm delivery and unloading conditions in advance (whether forklift or crane access is convenient), reserve installation area dimensions, power specifications, and connection points with the medium hydraulic conveyor or other conveyors, and arrange qualified electricians to handle wiring and test runs.

3. Is the medium hydraulic conveyor suitable for all types of trucks?
   The medium hydraulic conveyor is more suitable for common truck models within a certain height range. Before ordering, inform the supplier of the frequently used models, trailer heights, and loading/unloading methods so technicians can assess compatibility; extreme heights or special structures may require a custom solution.

4. Do the two pieces of equipment have to be used together, or can they be used separately?
   The two pieces can operate independently: the multi-wedge belt powered roller conveyor can be used alone for internal warehouse transfer, and the medium hydraulic conveyor can handle height transitions between vehicles and the ground on its own. However, pairing them is more effective at reducing manual handling over long distances.

5. Which cargo types are unsuitable for transport on the hydraulic conveyor and roller conveyor?
   Loose items that are too small to be stably supported between rollers, or cargo with highly irregular bottoms that easily roll off, are not suitable for direct transport on this equipment combination. Such items typically require pallets, turnover boxes, or other carriers before being placed on the conveyors.
